CVIP C-Vision IP Video System
Portable multi-channel IP video recording system for subsea monitoring

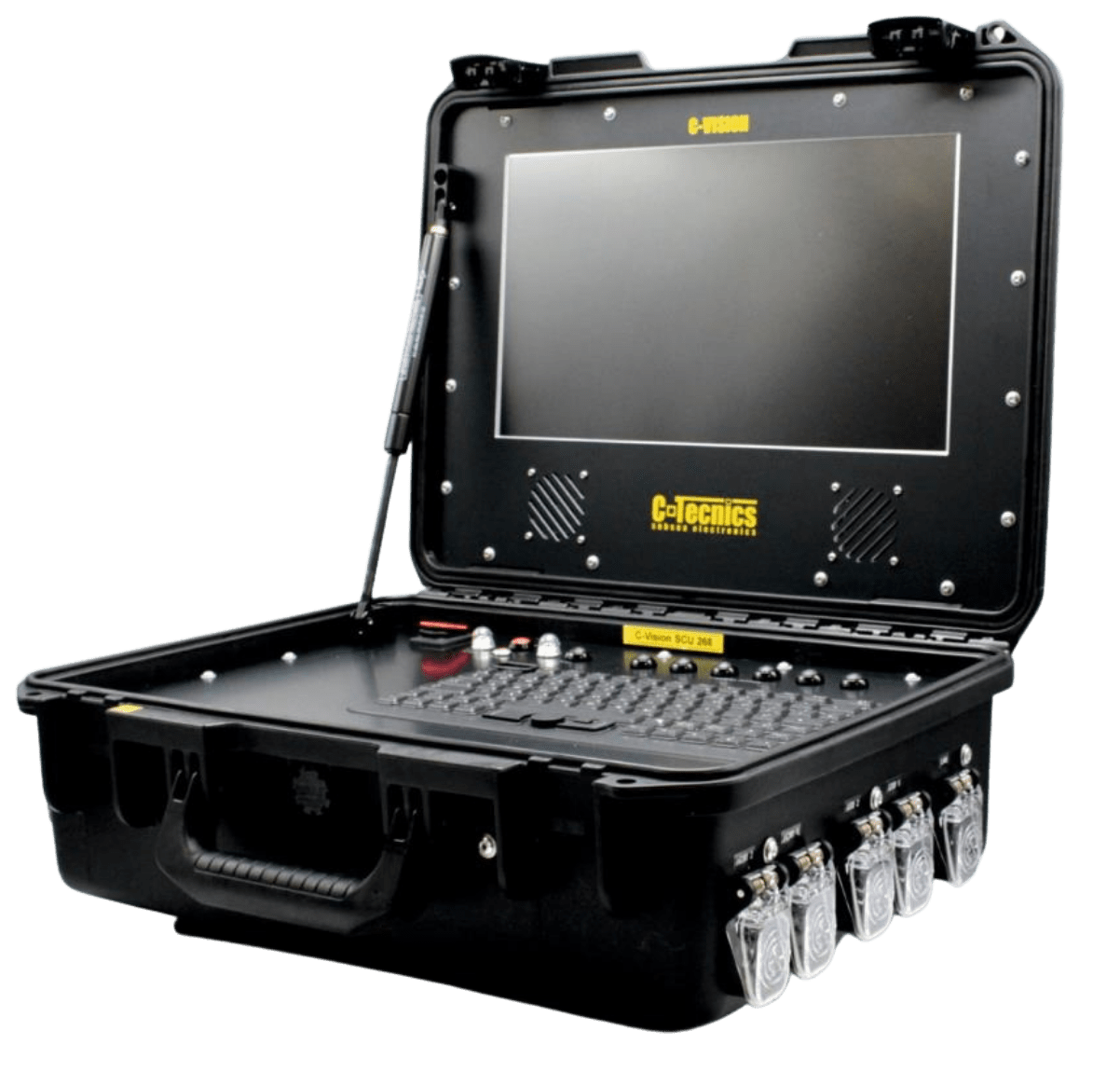

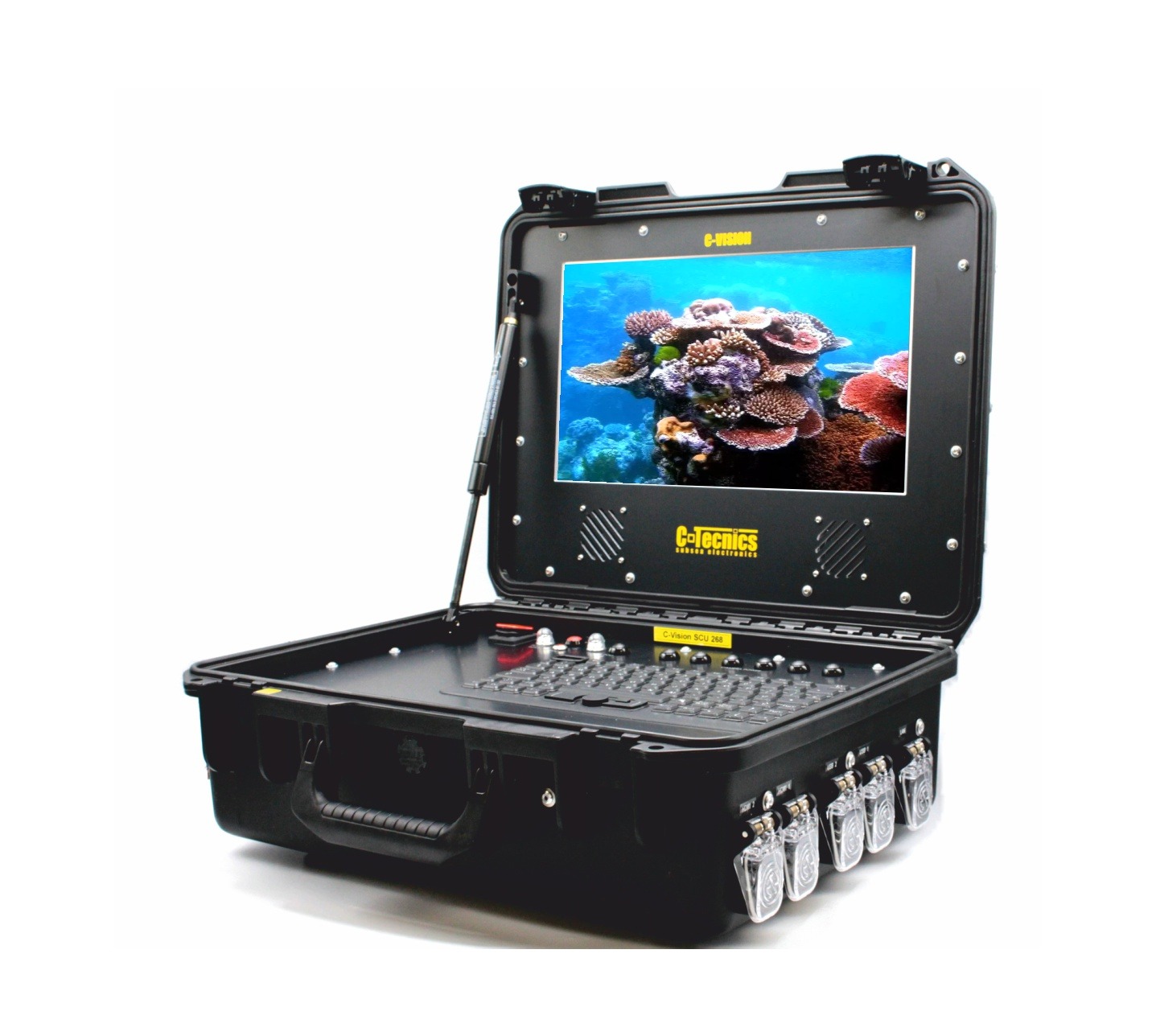

The C-Vision IP is an ultra-portable, IP-based video monitoring and recording system designed for flexible multi-camera subsea applications.
Its rugged yet lightweight design allows for rapid deployment and ease of setup across a range of operational environments. The system supports up to eight cameras simultaneously, providing real-time viewing and recording via an integrated PC platform.
Captured video is stored directly to the internal SSD, enabling efficient post-processing and review. The system can be configured with telemetry and optional communications to suit specific project requirements, offering a scalable solution for complex subsea operations.
Subsea Electronics
Technical Specifications
- Model: CVIP/[T]/[NC]/[X]
- Dimensions: 487 x 386 x 185 mm
- Weight: 13.5 kg
- IP Rating: IP67 (closed), IP65 (open)
- Input Power: 96–264 V AC
- Power Consumption: 300 W
- Internal Storage: 500 GB SSD
- Operating System: Windows 10
- Keyboard: 84-key UK QWERTY
- Umbilical Inputs: 12-pin Souriau UTS
- Display (On-board): 15.6 inch LCD panel
- Display (External): HDMI
- Communications: 3 channel simplex / 3 channel duplex (optional)
- Other Interfaces: 2 x USB-A, 1 x Ethernet
Configuration and System Components
- Order Code: CVIP/[T]/[NC]/[X]
- T: Telemetry
- NC: No communications
- X: Number of channels (1–8)
Surface Unit
Cameras
- CT3027 (IP)
- CT3027WA (IP, wide angle)
- CT3030-T (telemetry)
Junction Pod
Umbilical
- CV/UMB/0100 – 100 m (tailored lengths available)
