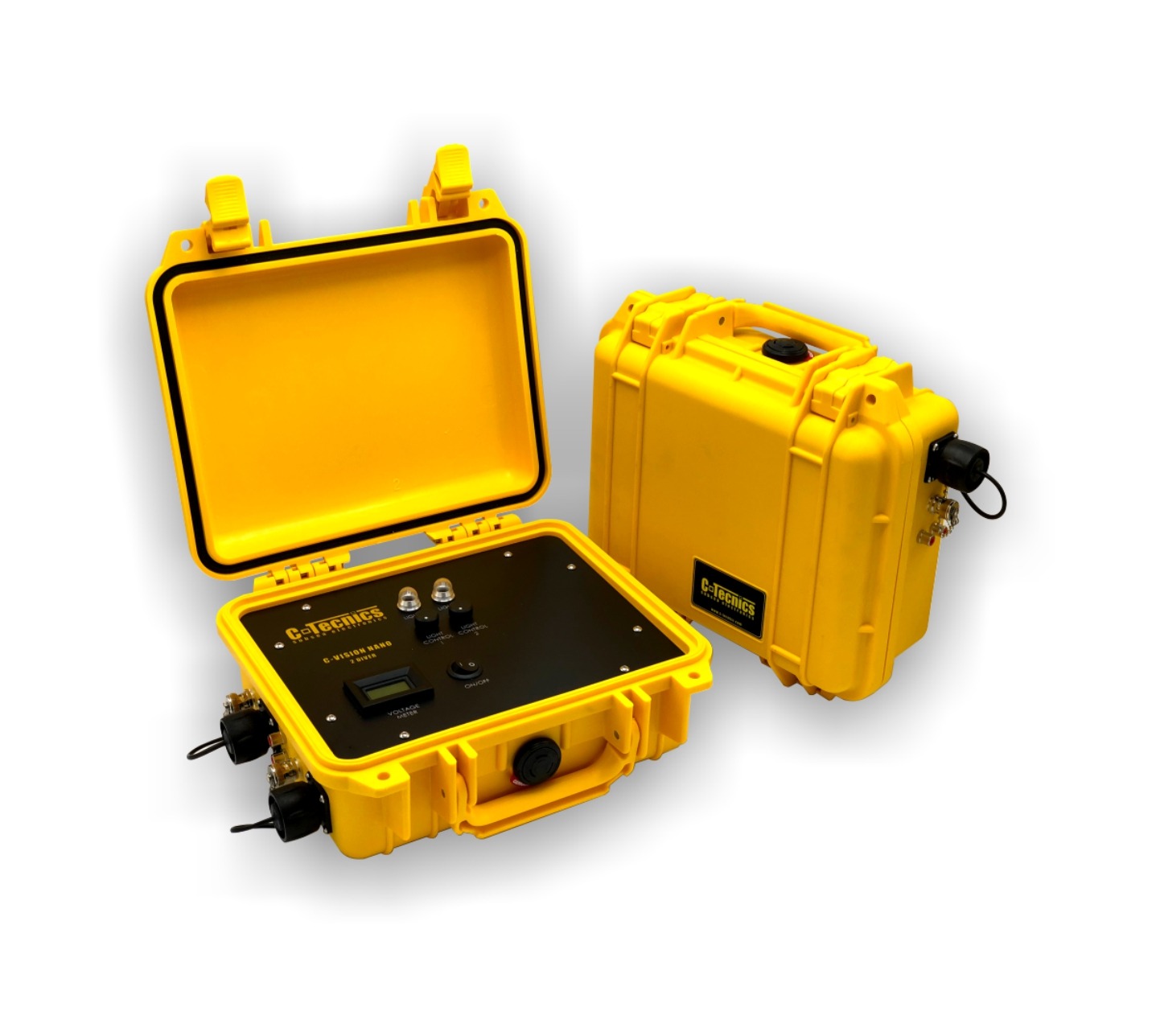

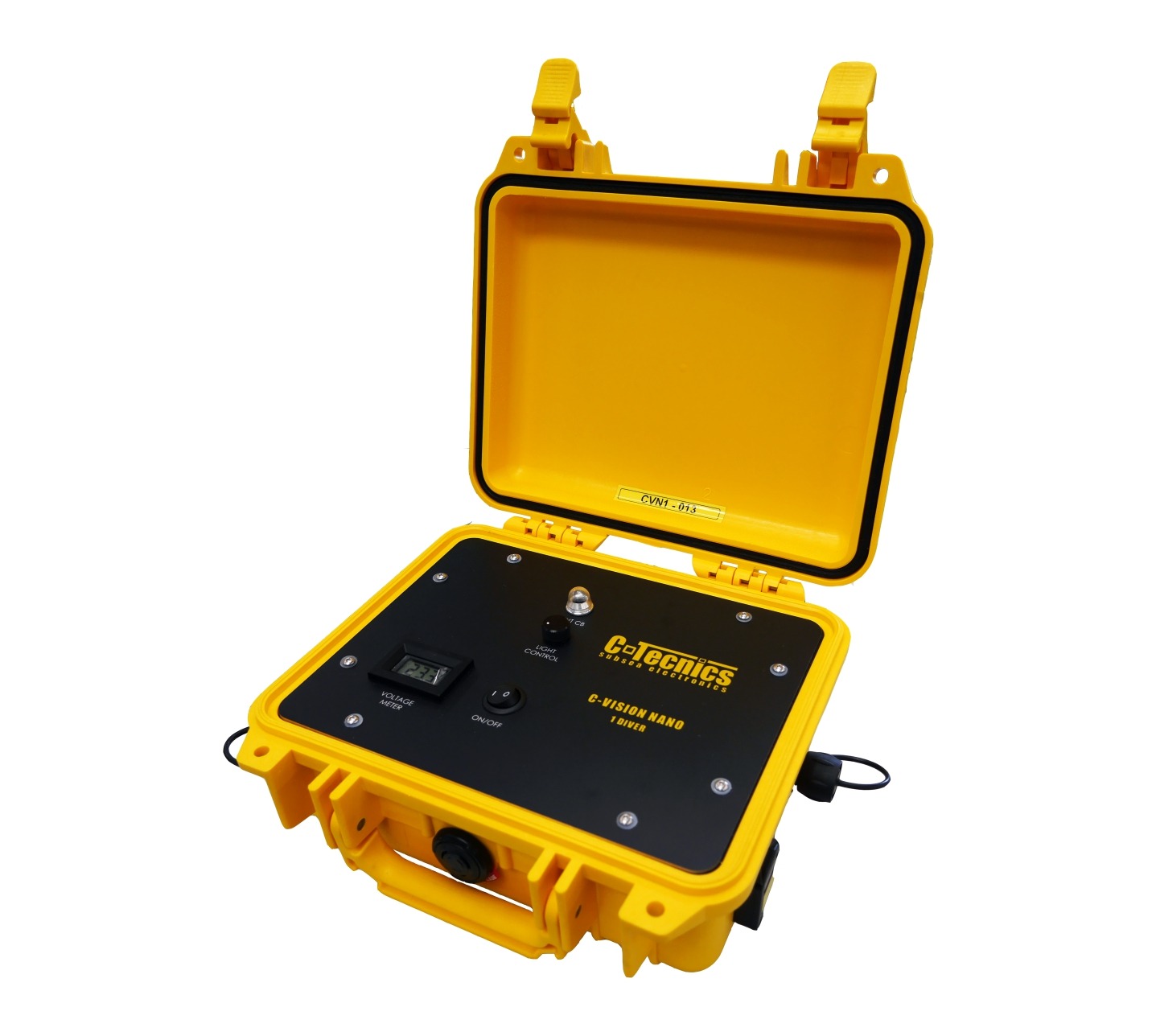

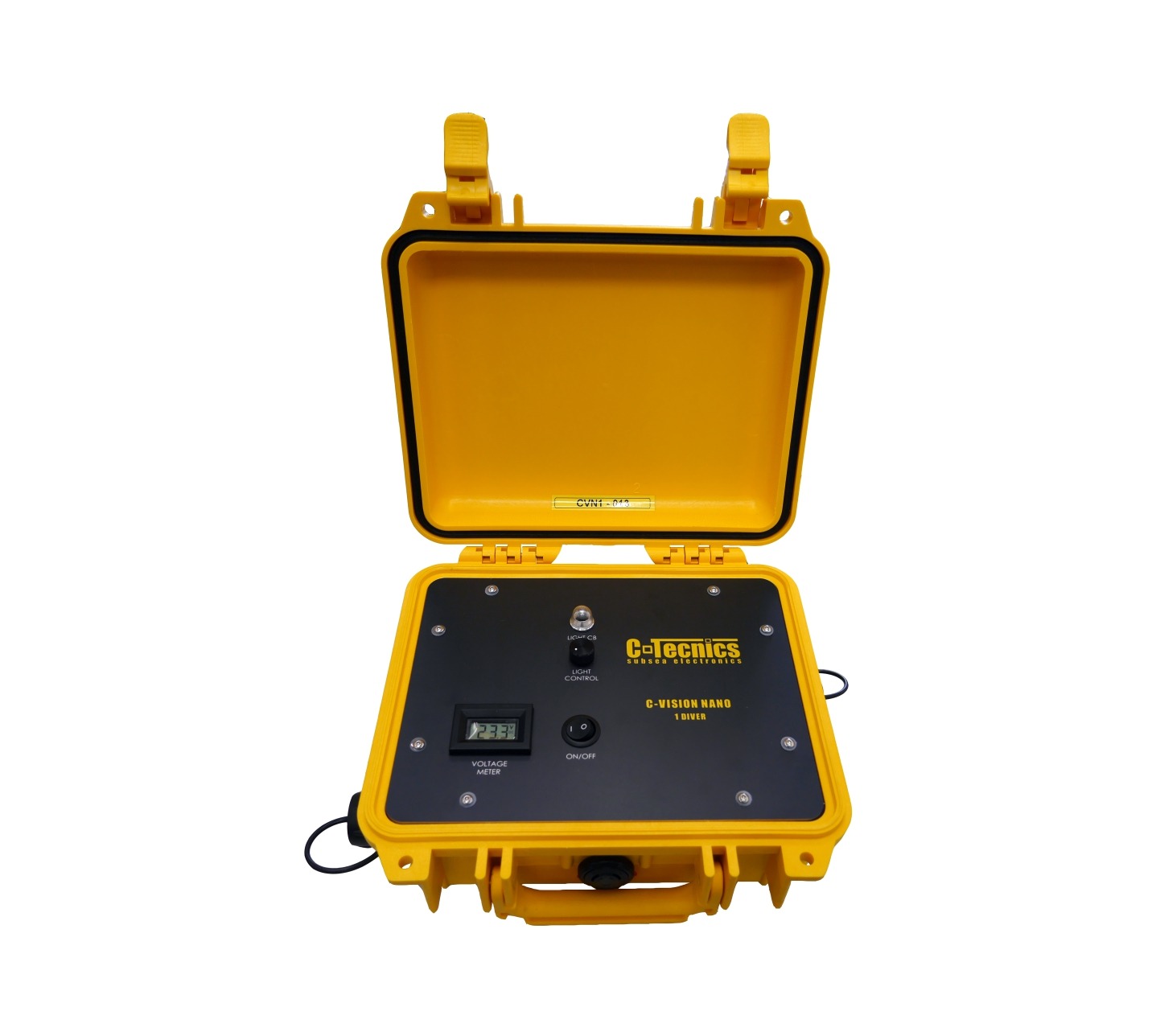

CVN C-Vision Nano Video Capture System
Portable PC-based video capture system with LED dimming control

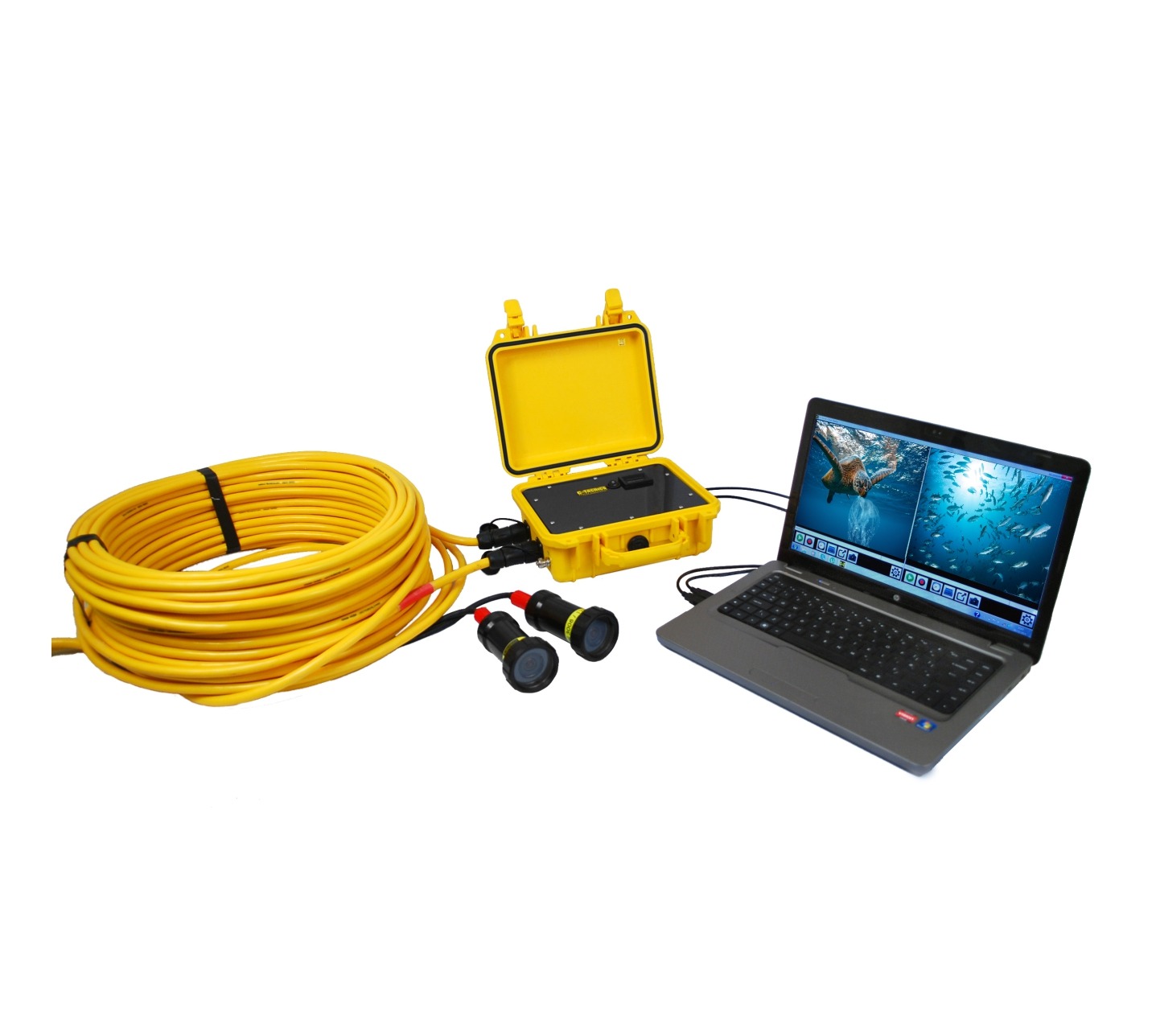

The C-Vision Nano is a compact and portable video capture system designed for use with a laptop or portable computer to monitor and record underwater operations.
The system connects directly via USB and is supplied with user-friendly video monitoring and recording software, enabling efficient capture and storage of video and images. Available in 1 and 2 channel configurations, the system also features integrated LED dimming control, with optional depth monitoring capability.
Designed for ease of deployment, the C-Vision Nano provides a flexible and lightweight solution for a range of diving and survey applications.
Subsea Electronics
Technical Specifications
- Model: CVN1 (1 channel), CVN2 (2 channel)
- Dimensions: 270 x 246 x 124 mm
- Weight: 4 kg
- IP Rating: IP67 (closed), IP65 (open)
- Battery: Rechargeable LiPo battery
- Battery Run Time: 4–5 hours
- Audio Input: Via RCA
- Video Channels: 1 or 2
- Video Format: PAL / NTSC
- Video File Format: MP4
- Snapshot File Format: JPEG
- Lamp Dimming: Yes
- Overlay: Time, date, timer, logo
- Umbilical Inputs: 12-pin Souriau UTS
- PC Interface: USB
- Supplied With: USB connection cable, mains AC charger, C-T Dive Station software
Minimum System Requirements
- Intel mobile processor, 1.6 GHz or higher
- 1 GB RAM or greater
- Windows 7 / 8
- Microsoft .NET 4.0 or above
