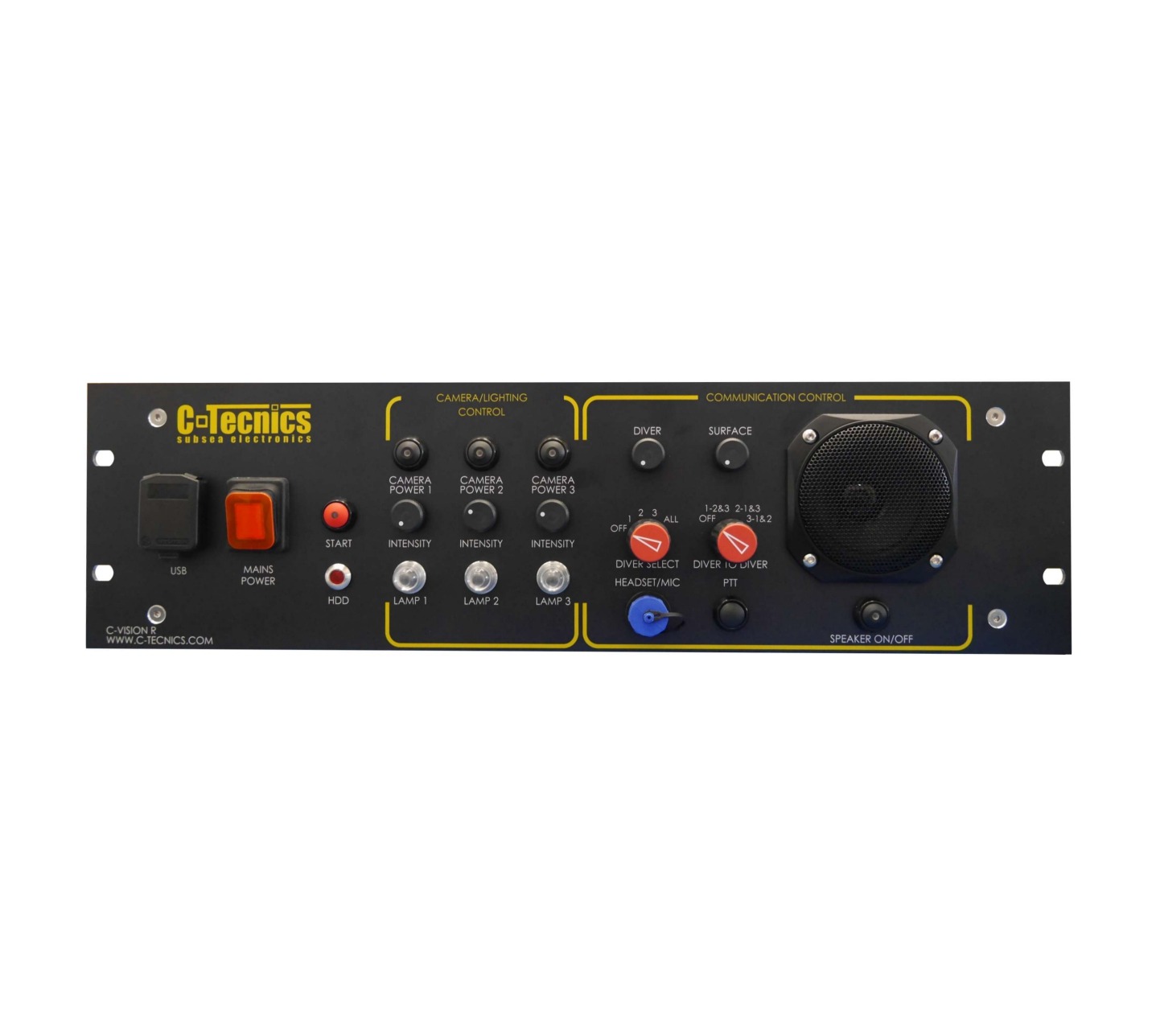

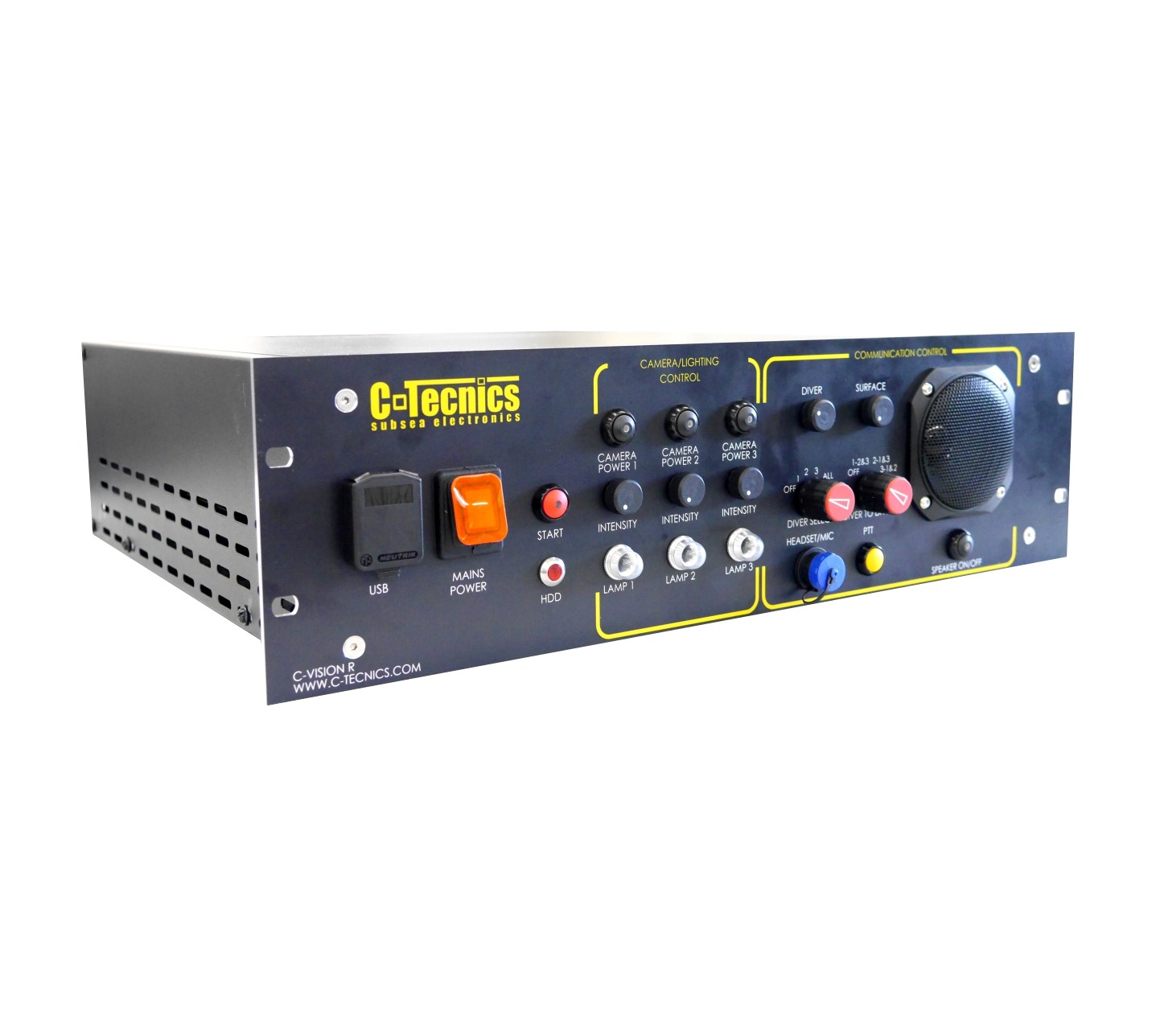

C-Vision R
Rack-mounted video recording and communications system for fixed installations
The C-Vision R is a rack-mounted version of the C-Vision system, designed for fixed installations such as containerised dive systems.
The system supports up to three video channels and integrated communications, operating in both 2-wire and 4-wire modes. It provides reliable video monitoring and recording alongside communications, with RAW video output and compatibility with the C-Tecnics C-DVR Blackbox Recorder.
Supplied with a wireless keyboard and premium tender headset, the system includes video recording and file management software, providing a complete solution for dive recording and operational monitoring.
Technical Specifications
- Model: CVR2 (2 channel), CVR3 (3 channel)
- Dimensions: 482 x 425 x 132 mm
- Weight: 9 kg
- Input Power: 110–230 V AC, 50–60 Hz
- Power Consumption: 600 W (max)
- Internal Storage: 500 GB SSD
- Operating System: Windows 10
- CPU: Intel Core i7-7700, 3.6 GHz
- Memory: 8 GB DDR4, 2,133 MHz
- Keyboard: 84-key UK QWERTY (wireless)
- Display (External): 1 x HDMI per channel
- Video Channels: 1–3 (video and snapshot)
- Video Format: PAL / NTSC
- File Format: MP4
- Snapshot File Format: JPEG
- Overlay: Time, date, timer, logo
- Communications Channels: 3 channels, simplex with cross-talk
- Battery Backup: 12 V, 4 Ah (communications system)
- Umbilical Inputs: 12-pin Souriau UTS
- Other Interfaces: 2 x USB-A, 1 x Ethernet
