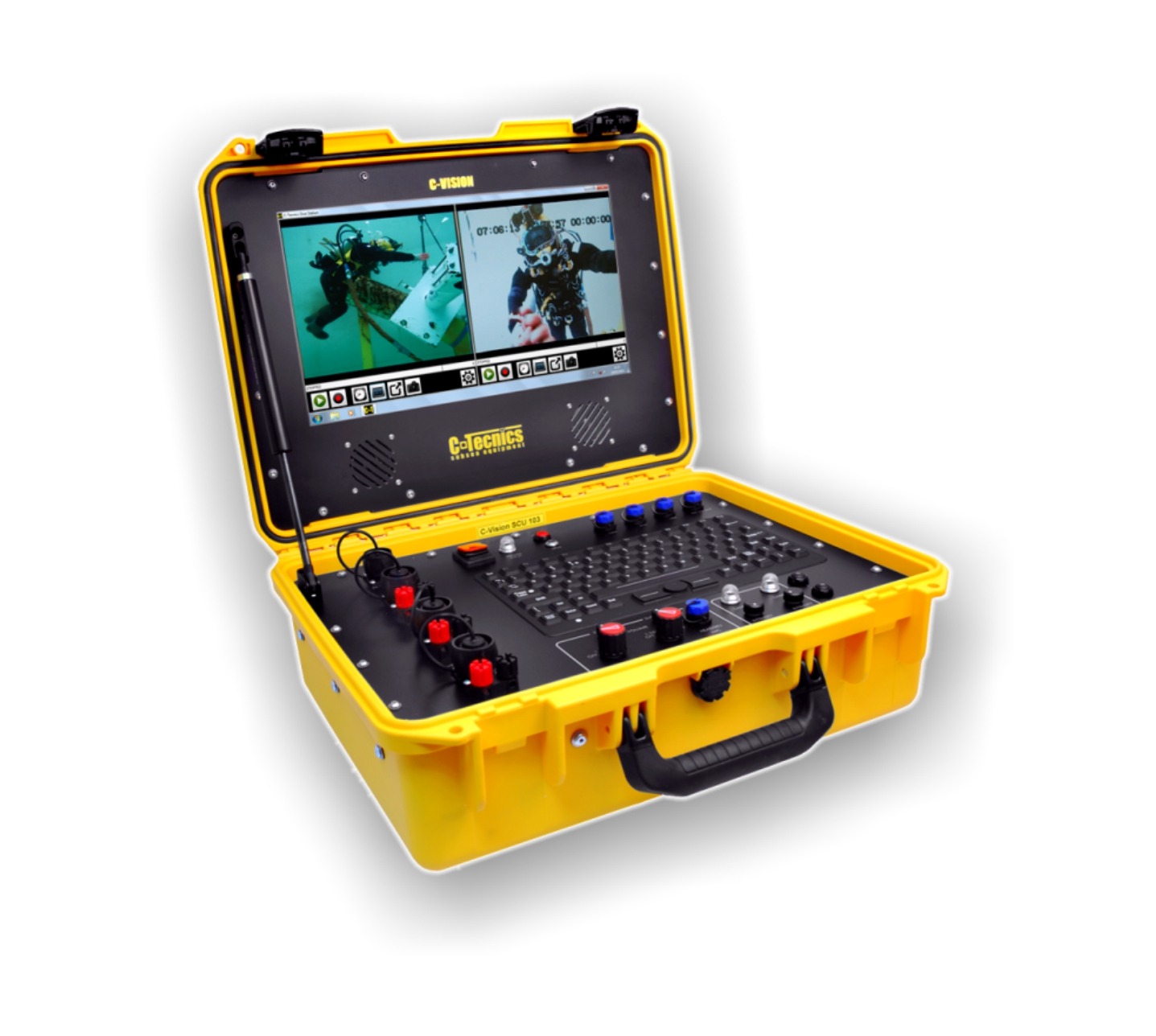

CV2 C-Vision Video and Communications System
Portable dual-channel video recording and diver communications system
The C-Vision is a compact and ultra-portable system combining video recording and diver communications in a single unit, designed for a range of subsea and diving applications.

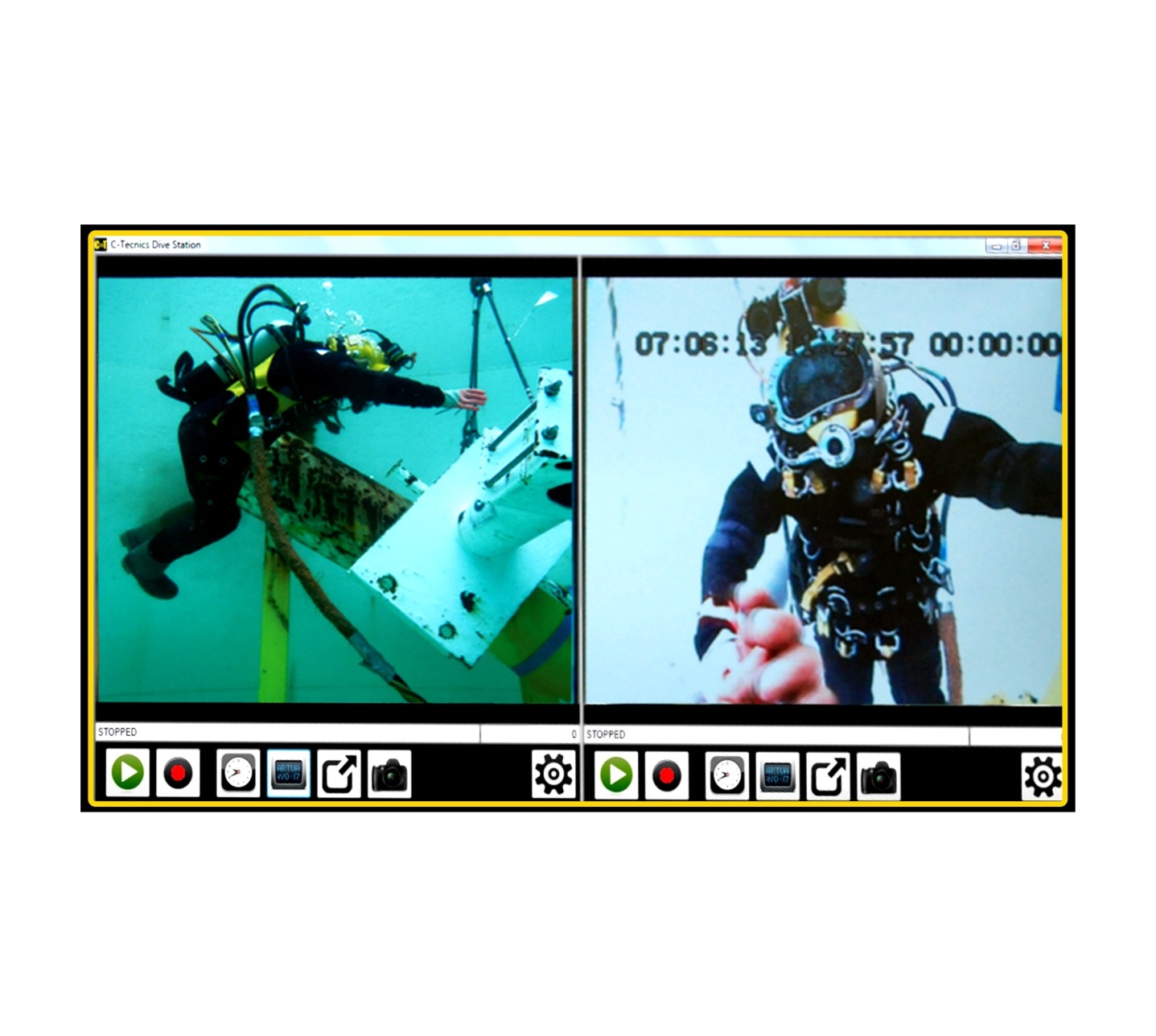

Its rugged yet lightweight design allows for quick deployment and ease of setup in operational environments. The system incorporates an integrated PC platform, providing a user-friendly interface for video monitoring and recording.
Captured video and image files are stored directly to the internal SSD, enabling efficient post-processing and review. The system supports dual video channels alongside integrated communications, making it suitable for inspection, survey and remote operations.
Technical Specifications
- Model: CV2
- Dimensions: 489 x 390 x 185 mm
- Weight: 13 kg
- IP Rating: IP67 (closed), IP65 (open)
- Input Power: 96–264 V AC
- Power Consumption: 600 W (max)
- Internal Storage: 500 GB SSD
- Operating System: Windows 10
- CPU: Intel Core i7-7700, 3.6 GHz
- Memory: 8 GB DDR4, 2,133 MHz
- Keyboard: 84-key UK QWERTY
- Display (On-board): 15.6 inch LCD panel
- Display (External): HDMI
- Video Channels: 2 (video and snapshot)
- Overlay: Time, date, timer, logo
- Communications Channels: 3 channels, simplex with cross-talk
- Battery Backup: 12 V, 6 Ah (communications system)
- Umbilical Inputs: 12-pin Souriau UTS
- Other Interfaces: 2 x USB-A, 1 x Ethernet
