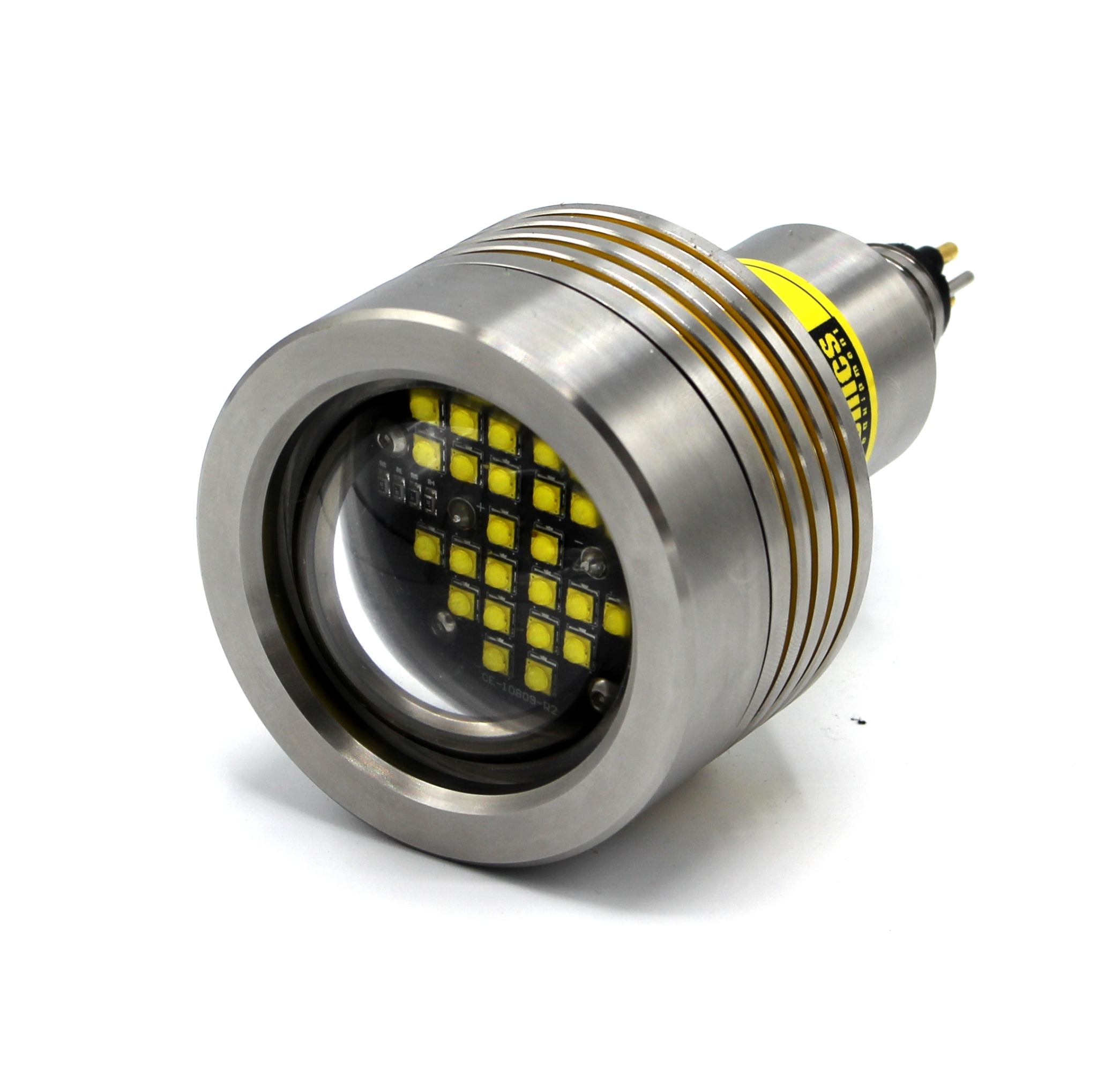

CT4013 4800L Mini LED Light
High-power compact subsea 4,800 lm LED light with control options
The CT4013 is a compact and robust subsea LED light designed to deliver high output in a small form factor.
The unit is available with a range of connector and control configurations, making it suitable for integration across diving, marine science and ROV systems. Integrated serial control electronics allow multiple lights to be connected and controlled via RS232, RS485 or 0–5 V control.
C-Net, a serial control application for PC, is also available for use with compatible C-Tecnics LED systems.
subsea
Technical Specifications
- Model: CT4013
- Housing: Titanium (Standard)*
- Window: Domed acrylic
- Depth Rating: 6,000 m
- Dimensions: L 92.5 mm x D 70 mm
- Weight: 354 g (water) / 720 g (air)
- Connector: MCBH3M (0–5 V), MCBH5M (RS232/RS485)
- Voltage: 24 V DC
- Operating Current: 1 A
- Power Consumption: 24 W
- Dimming Options: 0–5 V, RS232/RS485
- Typical Luminous Flux: 4,800 lm
- Colour Temperature: 5,500 K
- Beam Angle: 125°
- Operating Temperature: -10 to +40 °C
- Operating Life: 50,000 hours
*Alternative housing materials available on request
