C-Vision Cable
Composite subsea cable for C-Vision and E-Vision systems
The C-Vision cable is a robust, ultra-flexible composite cable designed for use with the C-Tecnics C-Vision and E-Vision range of video systems.
It enables camera power, lighting power, communications and depth monitoring within a single cable. The compact diameter allows integration into existing diving umbilical bundles with minimal impact on overall size and flexibility.
Subsea Electronics

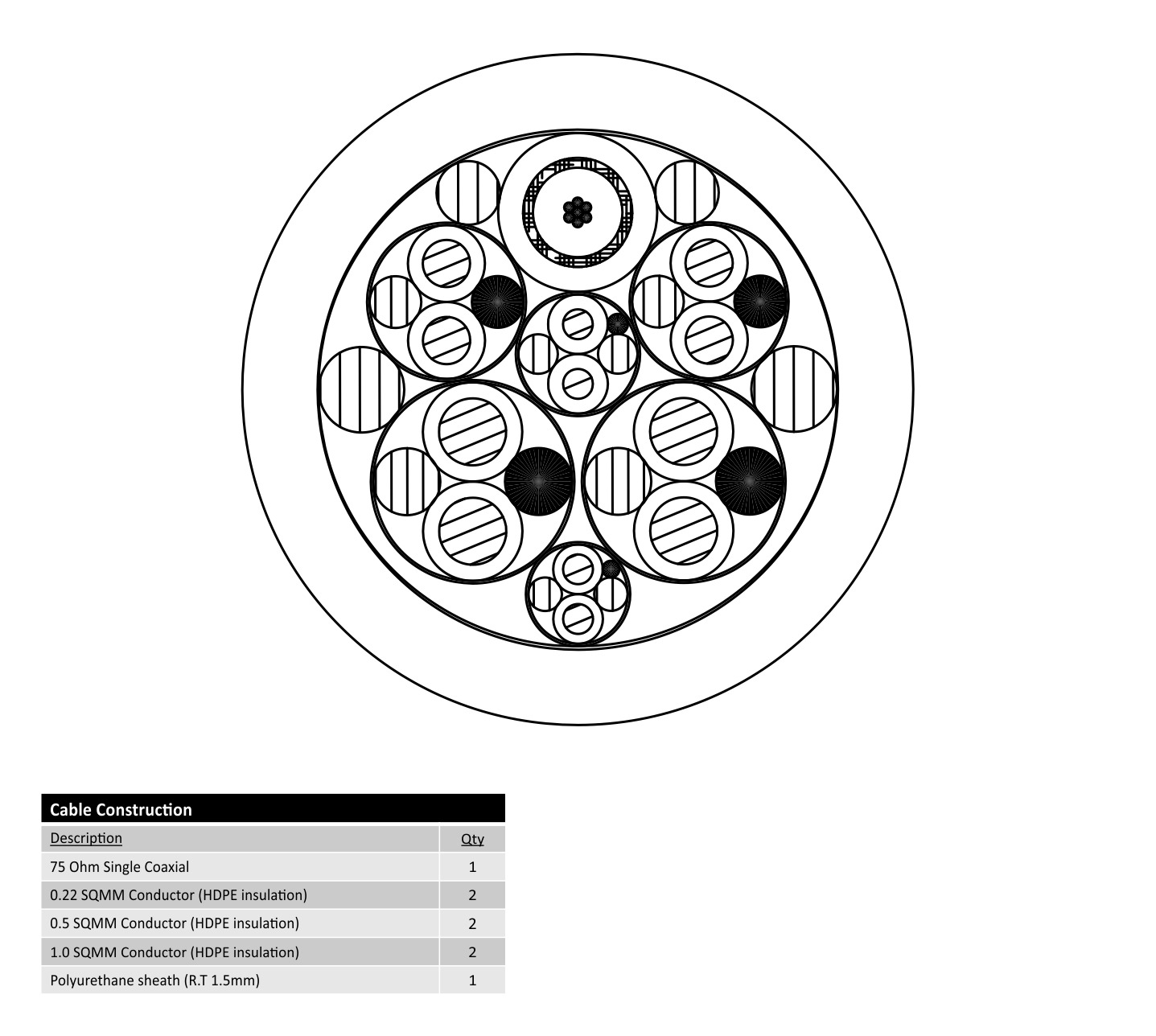

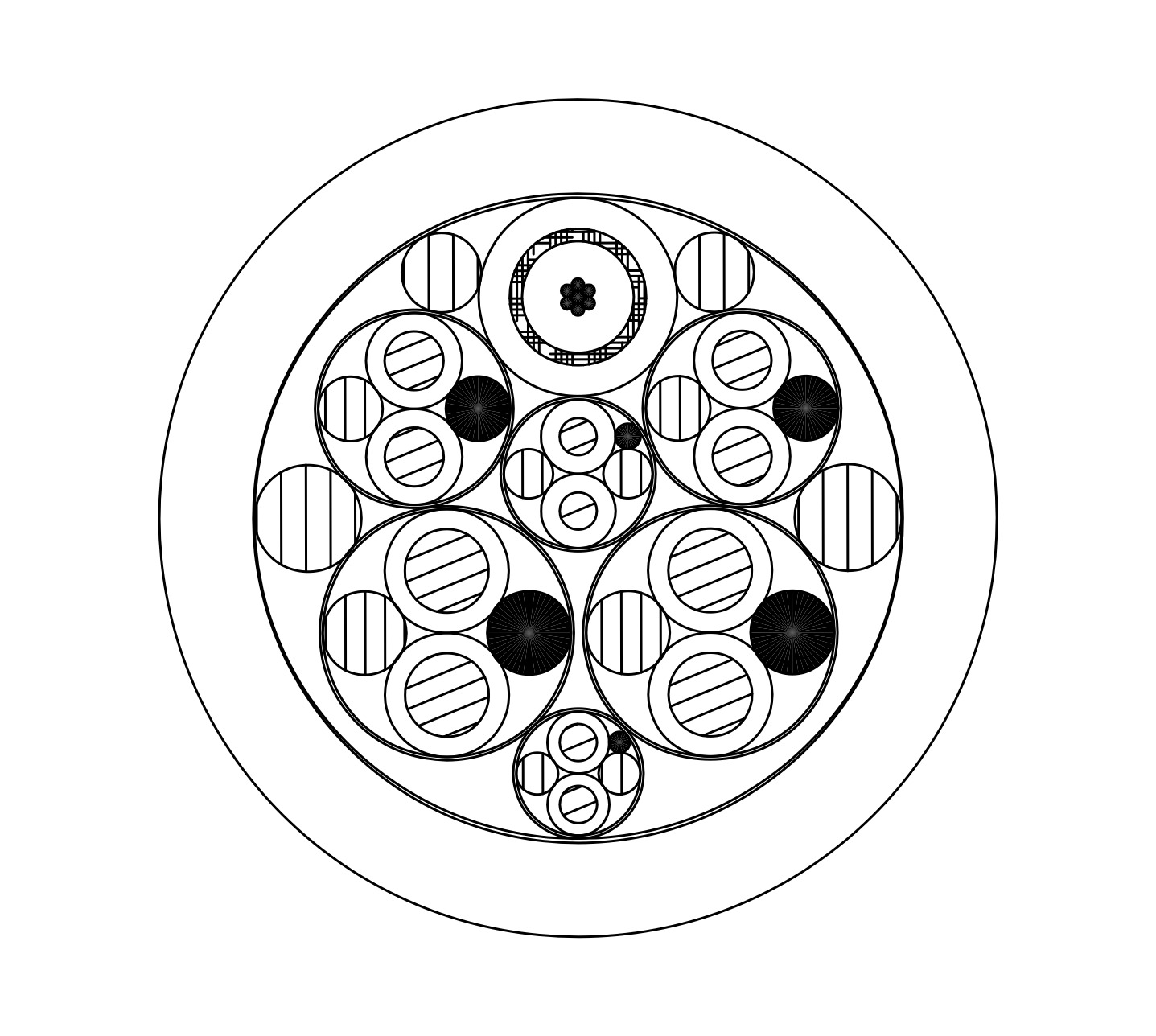

Cable Construction
| Description | Qty |
|---|---|
| 75 Ohm single coaxial | 1 |
| 0.22 mm² conductor (HDPE insulation) | 2 |
| 0.5 mm² conductor (HDPE insulation) | 2 |
| 1.0 mm² conductor (HDPE insulation) | 2 |
| Polyurethane sheath (R.T. 1.5 mm) | 1 |
Technical Specifications
- Model: 10270 (per metre)
- Insulated Core Diameter (0.22 mm²): 1.2 mm
- Insulated Core Diameter (0.5 mm²): 1.55 mm
- Insulated Core Diameter (1.0 mm²): 2.0 mm
- Overall Diameter: 13.5 mm
- Laid Up Cable Diameter: 10.5 mm
- Sheath: Polyurethane (R.T. 1.5 mm)
- Weight (Air): 226 kg/km
- Weight (Water): 79 kg/km
- Minimum Bend Radius (Static): 108 mm
- Minimum Bend Radius (Dynamic): 162 mm
- Operating Temperature: -40 to +80 °C
- Working Voltage: 0.22 mm²: 100 V / 0.5 mm²: 250 V / 1.0 mm²: 250 V
- Conductor Resistance: 0.22 mm²: 92.4 Ω/km / 0.5 mm²: 40.1 Ω/km / 1.0 mm²: 20.0 Ω/km
- Insulation Resistance (Core to Shield): 500 MΩ/km
- Insulation Resistance (Shield to Shield): 10 MΩ/km
