Diver Recovery Block and Tackle
CE marked 6:1 advantage diver recovery pulley

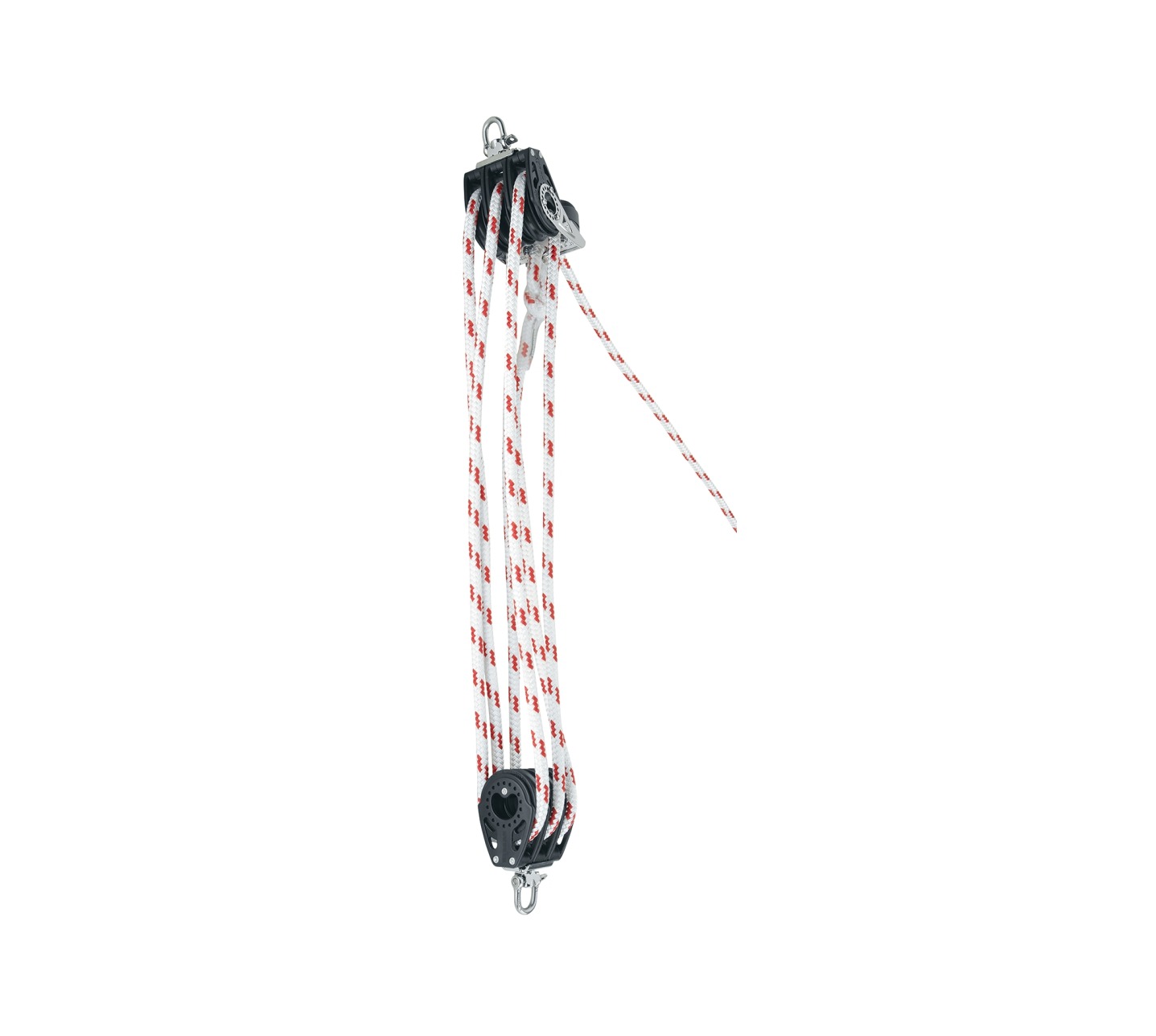

The C-Tecnics Diver Recovery Block and Tackle is designed for the safe recovery of a diver into a diving bell. It is a 6:1 advantage pulley system with a standard extended length of 6 metres, measured from the top of the bell, through the trunking, to the base of the stage. Alternative lengths are available on request.
The system should be attached to a secure lifting point certified to at least 900 kg. A fully dressed diver can be estimated at 170 kg, providing a 10x safety factor compatible with the load testing requirements of diver recovery harnesses such as the C-Tecnics Jok II Harness.
The top pulley is fitted with a cam cleat, allowing the rope to be locked off during recovery for single-operator use. The cleat angle is adjustable via a ratcheted locking pin system and can be set to suit the operator’s working position within the bell.
The bottom pulley is fitted with a stainless steel carabiner for secure attachment to the diver’s lifting or recovery point.
Technical Specifications
- Model: HS-050-1/[X]
- Extended Length: 6 m / 19.6 ft (standard)*
- Mechanical Advantage: 6:1
- Safe Working Load (SWL): 170 kg (human suspension), 300 kg / 2.9 kN / 660 lb
- Breaking Load: 1,700 kg
- Individual Proof Load: 1.6 kN / 373 lb
- Compliance: CE marked in accordance with Machinery Directive 2006/42/EC
- Standard: BS EN 13157:2008 – Cranes – Safety – Hand powered lifting equipment
*Extended lengths can be specified to suit requirements
