Depth Transducer
Depth measurement transducer for C-Depth and C-Vision systems
Designed for use with the C-Tecnics C-Depth Digital Depth Monitor and C-Vision system range, this depth transducer provides accurate diver depth measurement with a digital read-out to the surface controller.

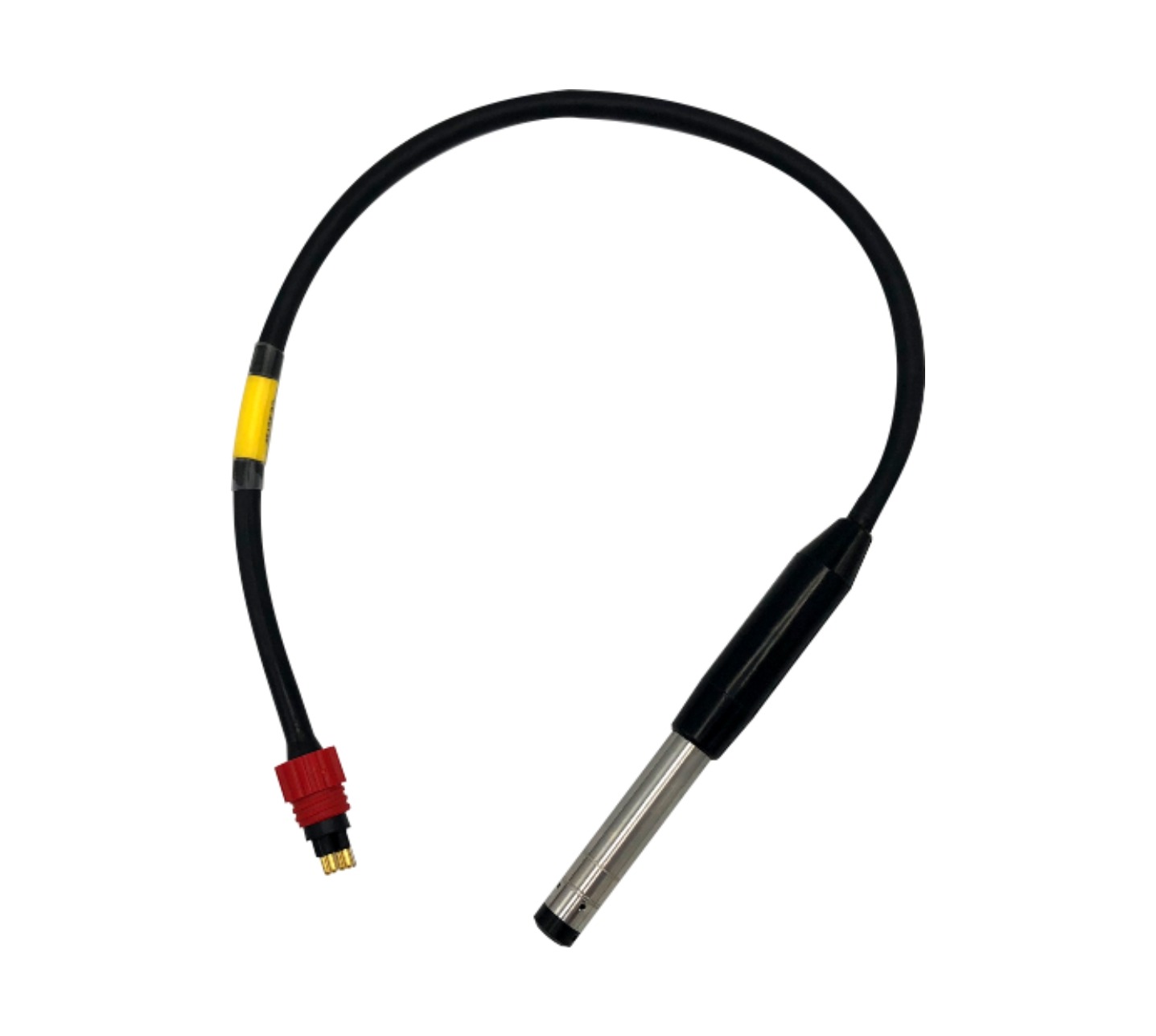

The unit can be incorporated into a diver’s umbilical bundle, either as a detachable whip or integrated into a subsea mould, offering flexibility across a range of operational setups.
Subsea Electronics
Technical Specifications
- Model: CD3010

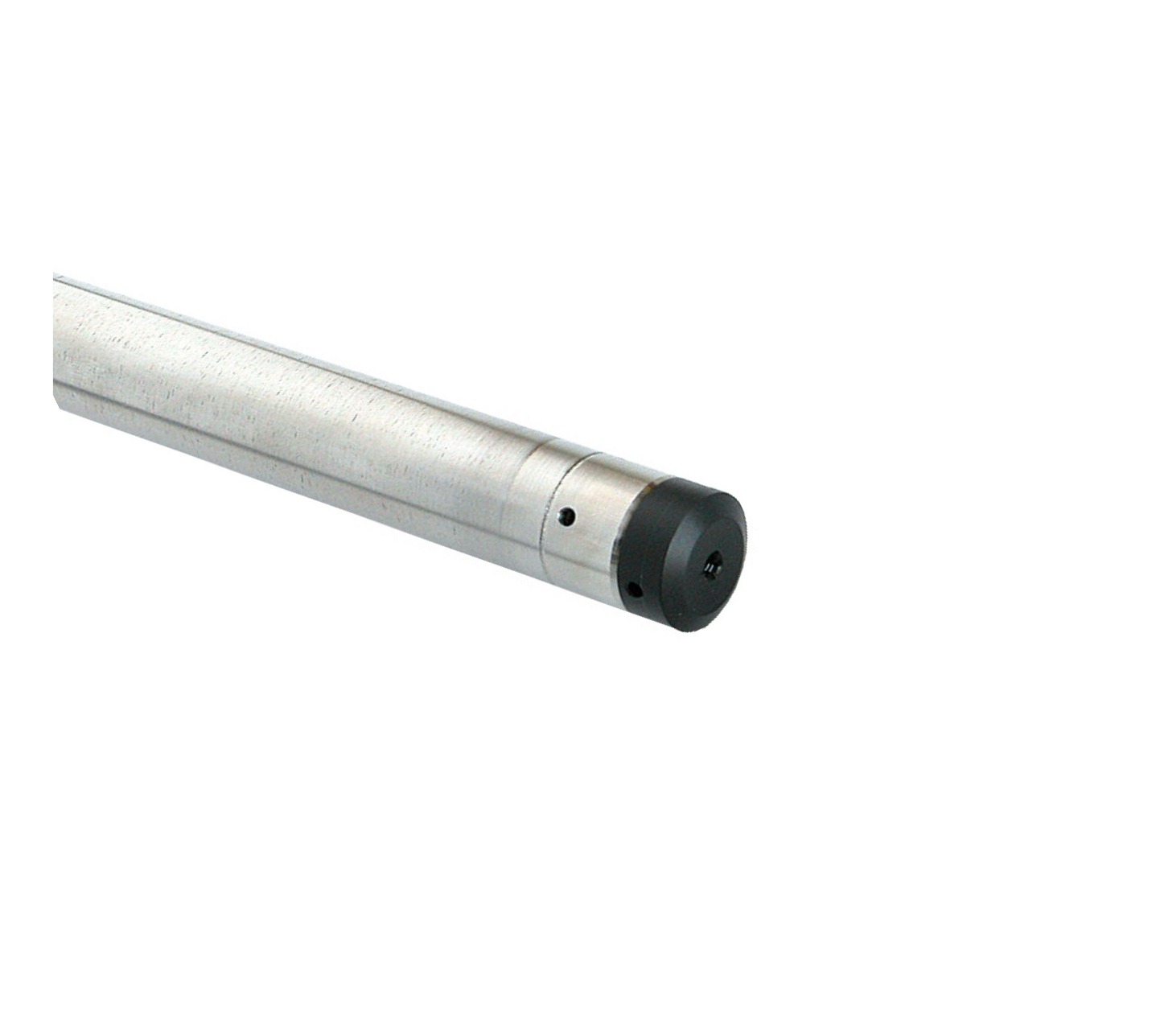

- Dimensions: Transducer element: 109 x 16 mm / With cable whip: 780 x 21.6 mm (at mould)
- Weight: ~200 g
- Housing: 316 stainless steel
- Connector: MCIL-4-MP (standard)*
- Accuracy: 0.025% of full scale
- Depth Range: 0–100 msw
- Voltage: 10–32 V DC
- Output: 4–20 mA / RS485
- Operating Temperature: -20 to +80 °C
*Alternative connector options available
