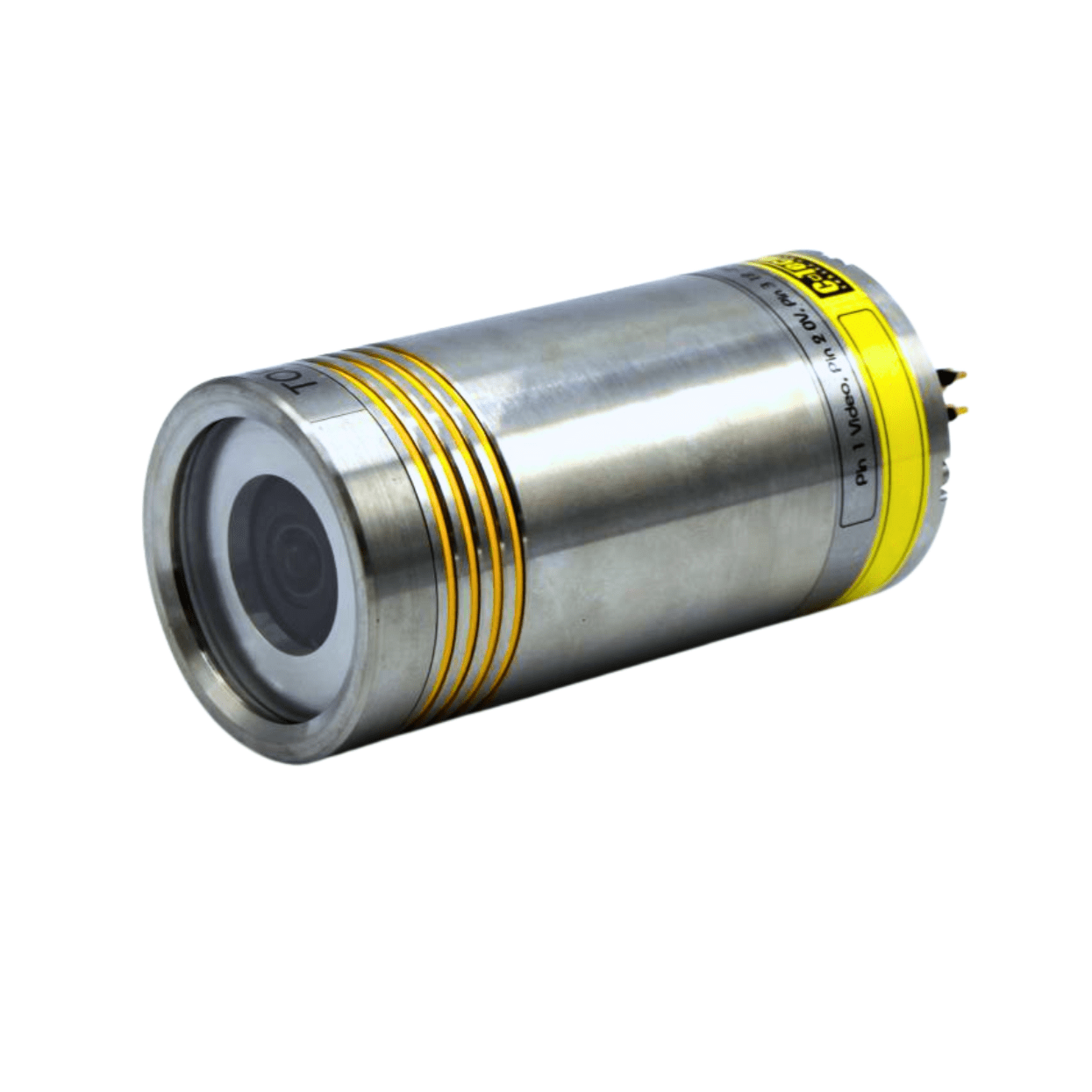

CT3010 Monochrome Inspection Camera
Low-Light Monochrome Subsea Inspection Camera.
The CT3010 is a high-resolution, high-contrast monochrome inspection camera offering exceptional image quality and low-light sensitivity. It is well suited to subsea applications including marine observation, ROV operations and benthic surveys.
Its robust titanium housing makes the CT3010 suitable for deep-water operations at depths of up to 4,000 metres.
A high-definition IP version is also available, offering the same excellent low-light performance.
Order code variants: CT3010-TI, CT-3010-TI, CT-3010TI, CT3010TI.
Subsea Electronics
Technical Specifications
- Model: CT3010
- Housing: Titanium
- Window: Sapphire
- Depth Rating: 4000 m
- Housing Dimensions**: 138 mm (L) × 70 mm (D)
- Weight: 783 g (water) / 1330 g (air)
- Connector: MCBH5M (CVBS) / MCBH6M (IP)
- Voltage: 12–24 VDC
- Angle of View: 90°
- Lens: Auto-iris
- Resolution: 570 TV lines (CVBS) / 1920 × 1080 pixels (IP)
- Sensor: 1/2 inch CCD
- Minimum Illumination: 5 × 10⁻⁶ lux
- Operating Temperature: -20°C to +50°C
- Operating Life: 50,000 hours
- Operating Current: <130 mA
- Signal to Noise Ratio: >52 dB
- Video Output: 1.0 Vp-p composite (CVBS)
- Latency: Approximately 250 ms (IP version)
*Alternative housing materials available on request
**Excluding connector
