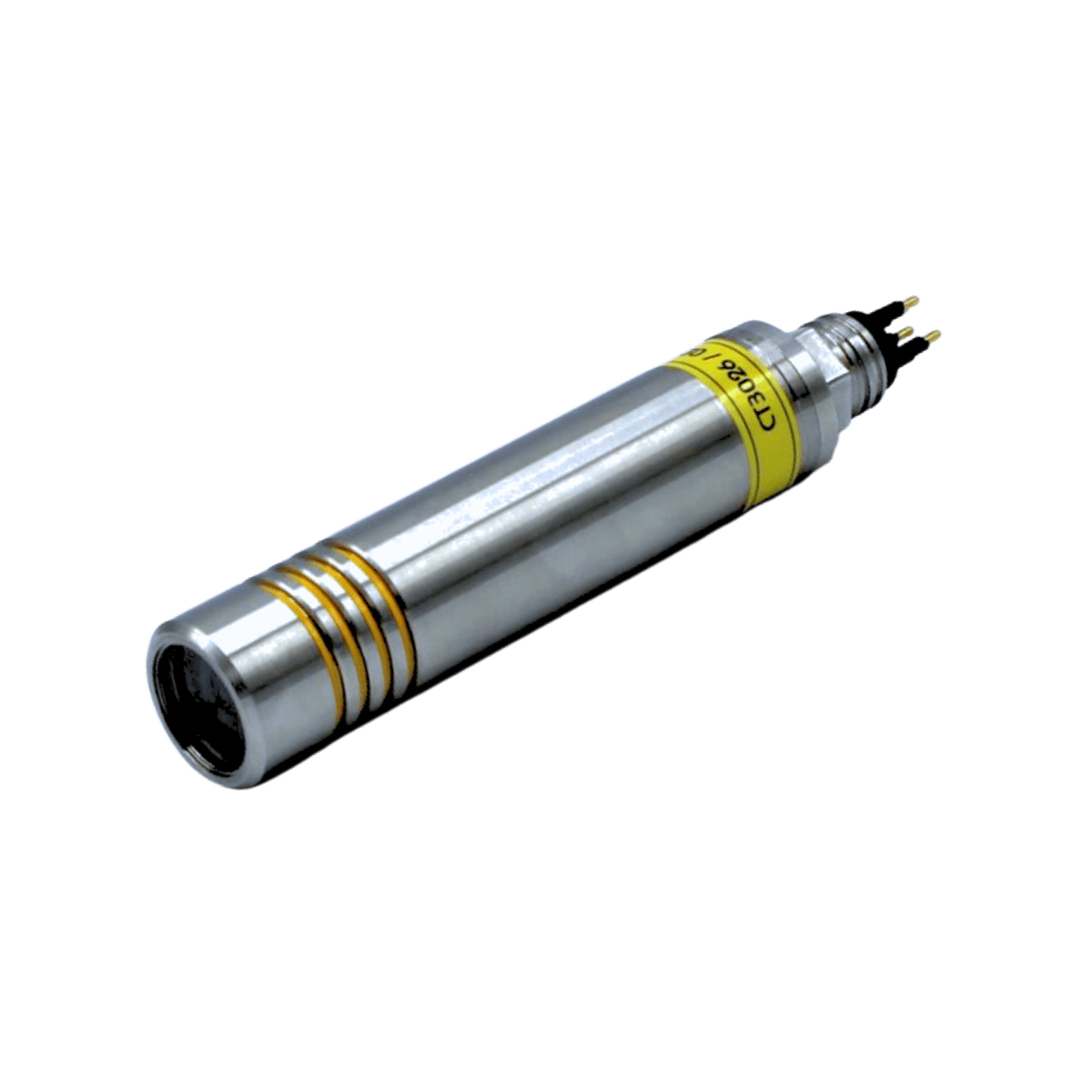

CT3026 Analog High-Definition Colour Camera
Analogue High-Definition (AHD) Subsea Colour Camera.
A compact, high-definition colour camera that provides excellent, distortion-free underwater images. The camera is equally suitable for diver helmet mounting, handheld inspection work and ROV-mounted applications.
Low-light sensitivity and high resolution make the CT3026 a versatile camera for everything from close inspection work to general observation tasks.
The CT3026 is also available in a monochrome version.
Subsea Electronics
Technical Specifications
- Model: CT3026
- Housing: Titanium (Standard)*
- Window: Sapphire
- Depth Rating: 4000 m
- Housing Dimensions**: 135 mm (L) x 30 mm (D)
- Weight: 182 g (water) / 280 g (air)
- Connector: MCBH5MSS (standard)
- Voltage: 12–24 VDC
- Operating Current: 150 mA
- Sensor:1/3-inch Ex-View HAD CCD
- Minimum Illumination: 0.01 lux / f1.2
- Video Output:1920 × 1080 at 25 fps (AHD)
- Signal-to-Noise Ratio: >52 dB
- Operating Temperature: -10°C to +40°C
- Operating Life: 50,000 hours
*Alternative housing materials available on request
**Excluding connector
