Infrared subsea LED light for low-light and specialist subsea applications

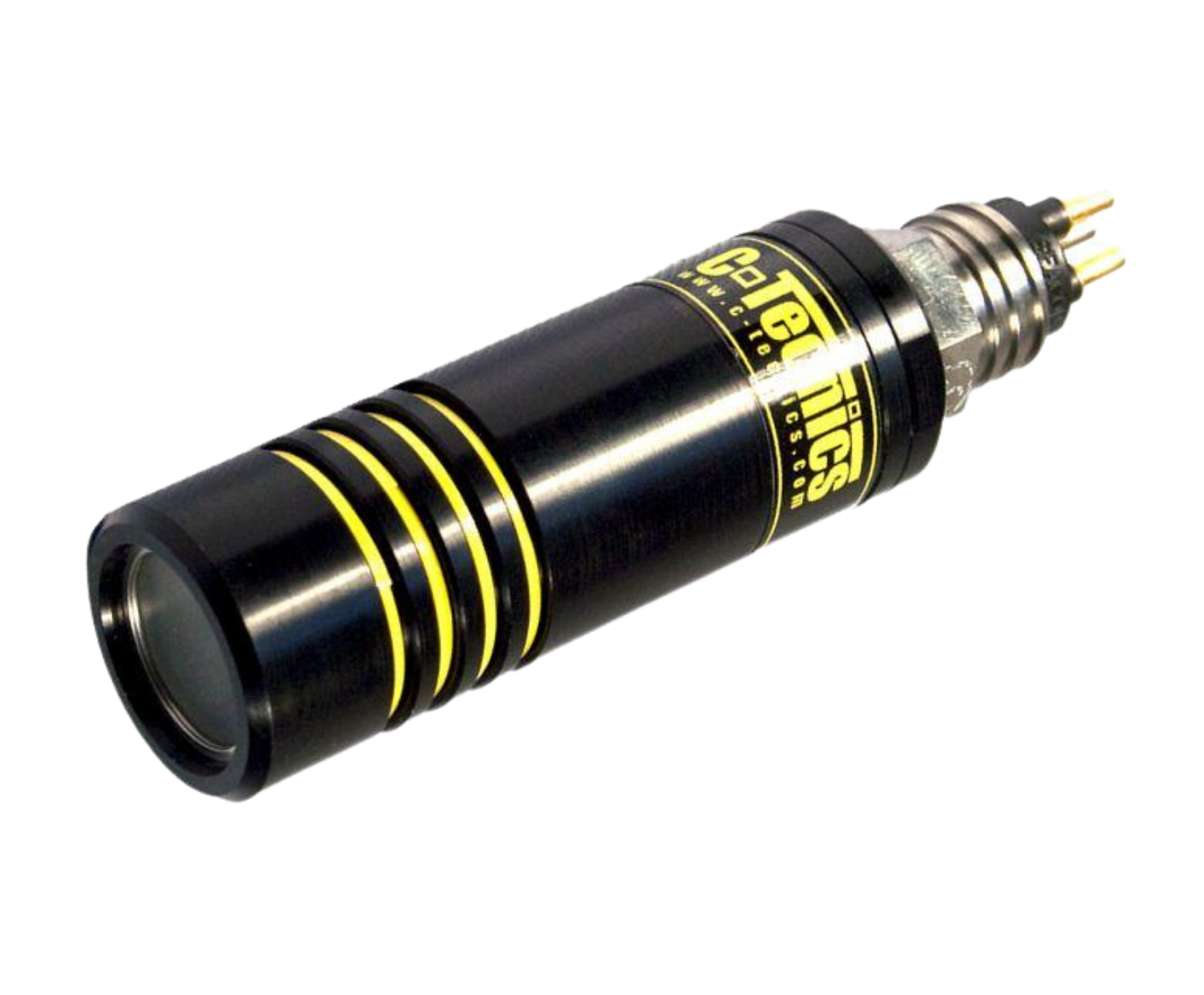

The CT4017 IR LED Light is a compact and lightweight subsea infrared light designed for low-light and specialist subsea applications.
Operating at a wavelength of 850 nm, the unit provides infrared illumination for use with compatible cameras and imaging systems where visible light is not suitable or desired. Its compact form factor allows for straightforward integration onto ROV systems, hyperbaric systems, and diver equipment.
Designed for reliability and ease of integration, the CT4017 features a robust housing and simple power requirements, making it suitable for a range of subsea and hyperbaric applications.
Product code variants: CT4017, CT-4017.
Model: CT4017
Housing: Anodised aluminium
Window: Acrylic
Depth Rating: 1,000 m
Dimensions: L 80 mm x D 30 mm
Weight: 66 g (water) / 144 g (air)
Connector: MCBH2M
Voltage: 24 V DC
Operating Current: 800 mA
Power Consumption: 19.2 W
LED Type: Infrared LED
Wavelength: 850 nm
Radiant Intensity: 350 mW/sr
Beam Angle: 45°
Operating Temperature: -40 to +80 °C
Operating Life: 50,000 hours
