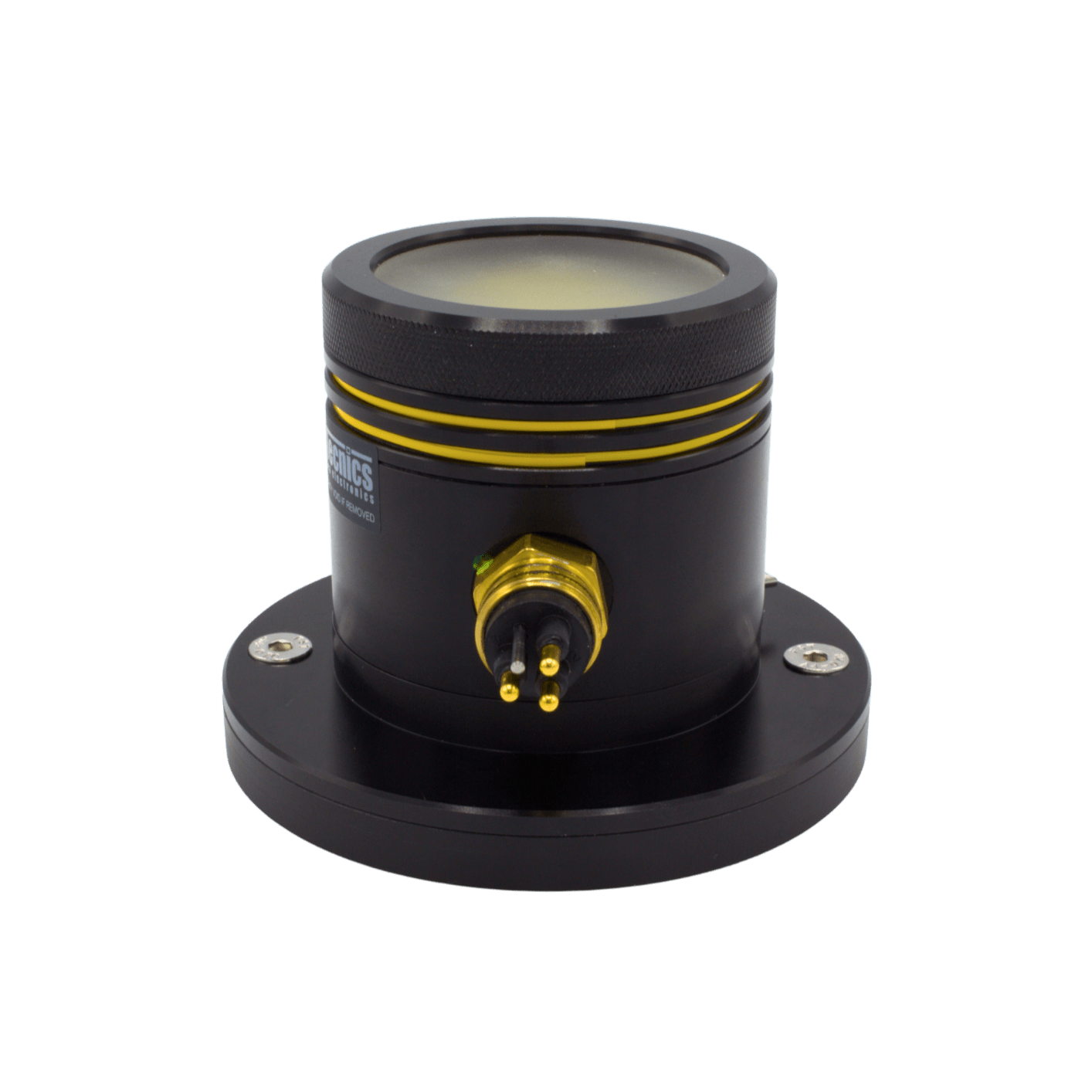

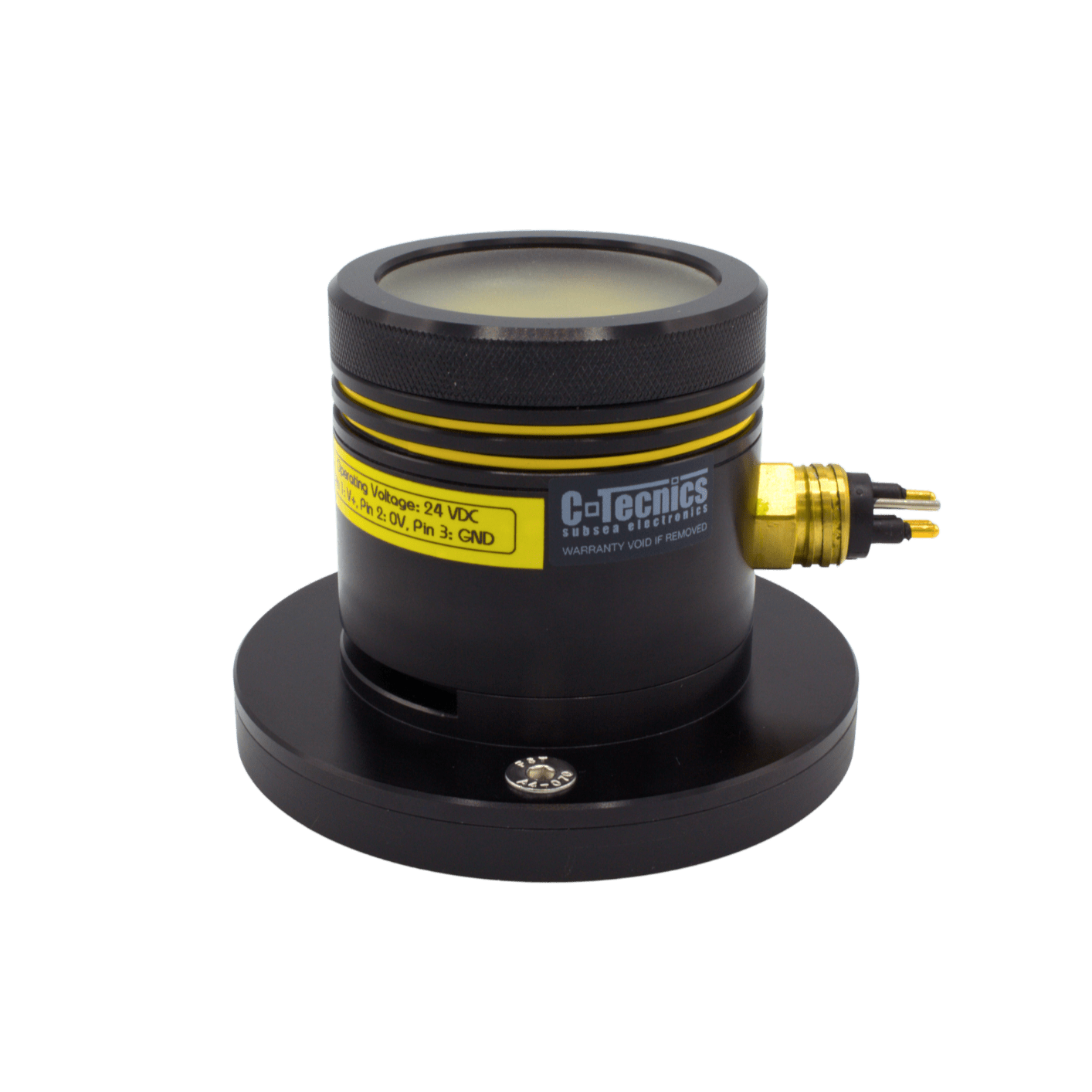

CT4010 Hyperbaric Chamber Light
Adjustable chamber lighting for diving and hyperbaric use
A dimmable light designed for general illumination or bunk lighting in diving chambers and hyperbaric environments.
The CT4010 is an aluminium chamber light rated to 450 msw. Its adjustable brightness and frosted lens provide a wide, soft light output suitable for internal chamber use.
To relieve internal pressure caused by helium ingress, the housing is fitted with a helium relief valve.
Subsea Electronics
Technical Specifications
- Model: CT4010
- Housing: Anodised aluminium
- Weight: 1kg
- Body Dimensions: 75 mm Ø × 75 mm H
- Base Dimensions: 114 mm Ø × 10 mm H
- Window: Frosted acrylic
- Operating Depth: 450 msw
- Beam Angle: 123°
- Voltage: 24 V DC
- Operating Current: 250 mA
- Power Consumption: 6 W
- Colour Temperature: 5,500 K (cool white)
- Connector: MCBH2MSS (Standard)*
- Operating Life: 50,000 hours
*Alternative connector options available on request
