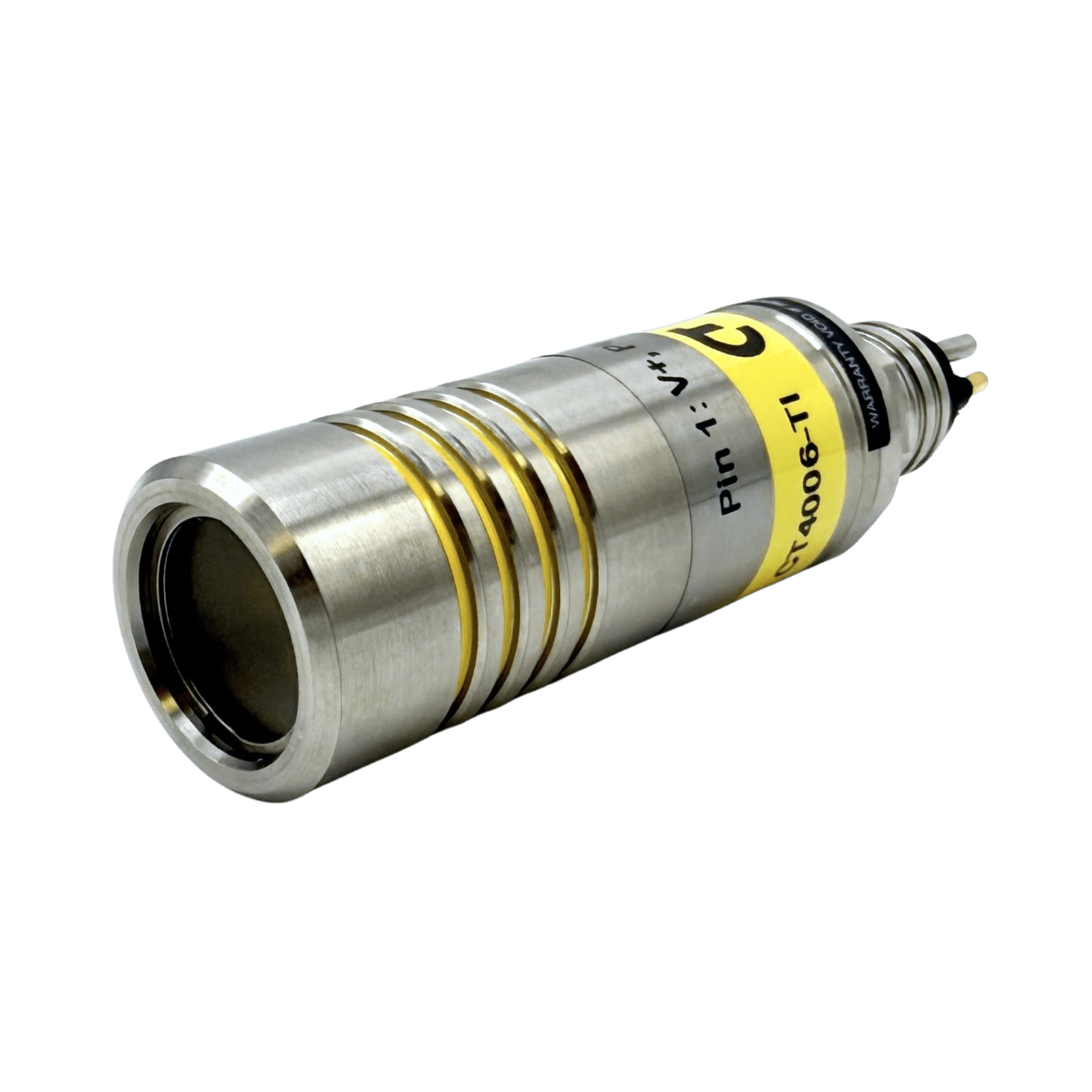

CT4006 1100L Mini LED Light
Ultra-compact subsea 1,100 lm LED light for general illumination
The CT4006 is a compact and robust subsea LED light designed for operation at depths of up to 6,000 m.
With a length of 80 mm and a diameter of 30 mm, it offers a highly compact form factor, making it suitable for applications where space is limited. The light provides consistent, wide-angle illumination and is designed for reliable operation in demanding subsea environments.
Subsea Electronics
Technical Specifications
- Model: CT4006
- Housing: Titanium (Standard)*
- Window: Frosted acrylic
- Depth Rating: 6,000 m
- Dimensions: L 80 mm x D 30 mm
- Weight: 370 g (water) / 670 g (air)
- Connector: MCBH2M
- Voltage: 24 V DC
- Power Consumption: 19.2 W
- Dimming Options: N/A
- Typical Luminous Flux: 1,100 lm
- Colour Temperature: 5,500 K
- Beam Angle: 125°
- Operating Temperature: -10 to +40 °C
- Operating Life: 50,000 hours
*Alternative housing materials available on request
