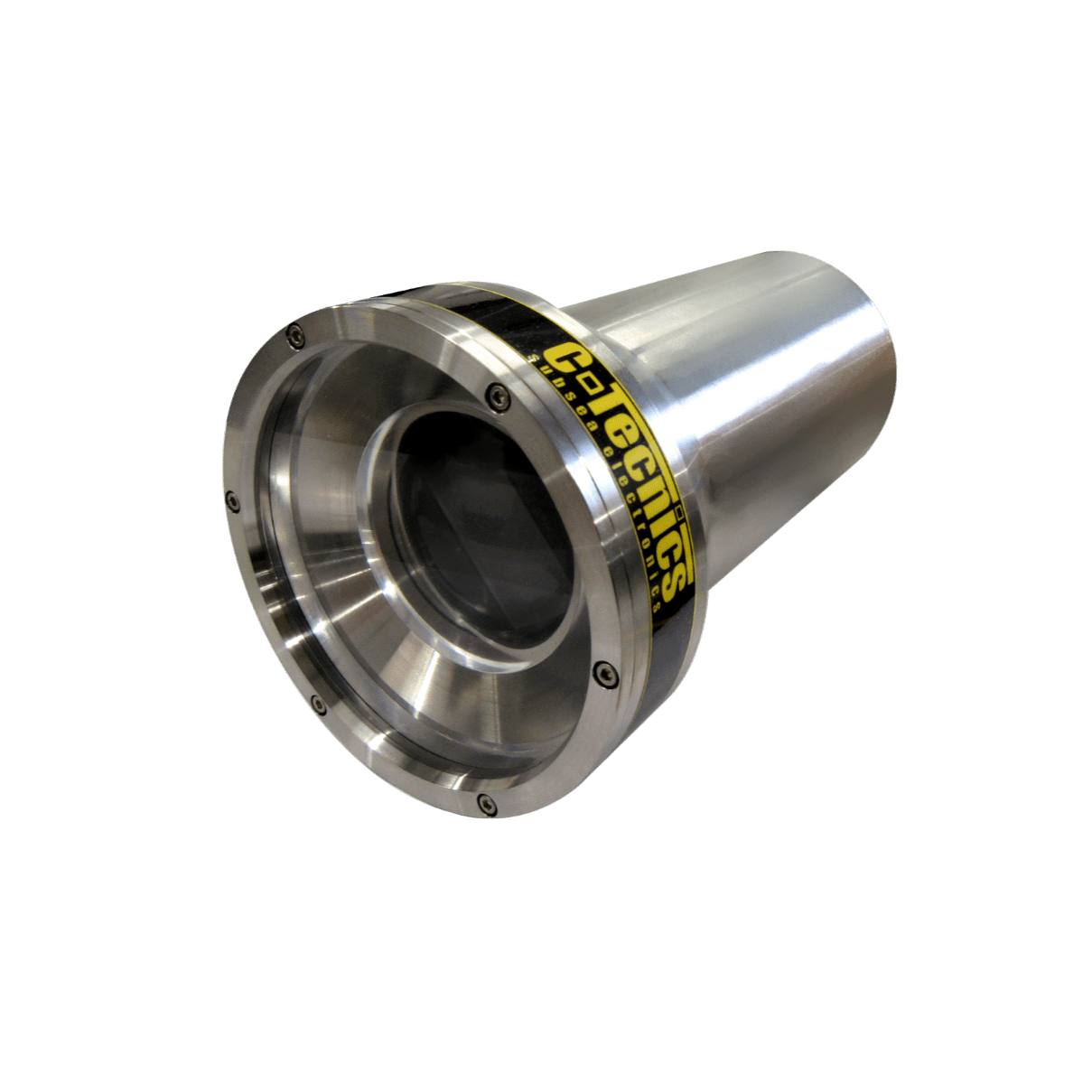

CT4015 Flashgun
Synchronised subsea LED flashgun for underwater stills photography
The CT4015 Flashgun is a high-output subsea LED flashgun designed to provide synchronised illumination for underwater stills photography.

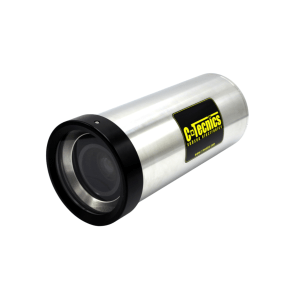

Originally configured for use with the C-Tecnics CT3022 Digital Stills Camera, the flashgun can automatically adjust its light output when operating as part of a compatible camera system. Ambient light conditions are measured and the required flash output is calculated to provide suitable illumination for image capture.
Manual light output adjustment is also available through serial control or a 0–5 V control signal, allowing the flashgun to be integrated with other compatible subsea imaging systems.
Subsea Electronics
Technical Specifications
- Model: CT4015
- Housing: Titanium (Standard)*
- Window: Frosted lens
- Depth Rating: 4000 m
- Housing Dimensions**: 130mm (D, Port) / 101mm (D, Connector End) x 229mm (L)
- Weight: TBC
- Connector (Standard): TBC
- Input Voltage: 12–24 VDC
- Operating Current: TBC
- Maximum Power Consumption: TBC
- Maximum Illuminance: 1300 lux at 1 m
- Light Output Control: Automatic when used with a compatible C-Tecnics camera system
- Manual Control: Serial control or 0–5 V control input
- Light Source: LED
- Operating Temperature: TBC
- Operating Life: TBC
*Alternative housing materials available on request
**Excluding connector
