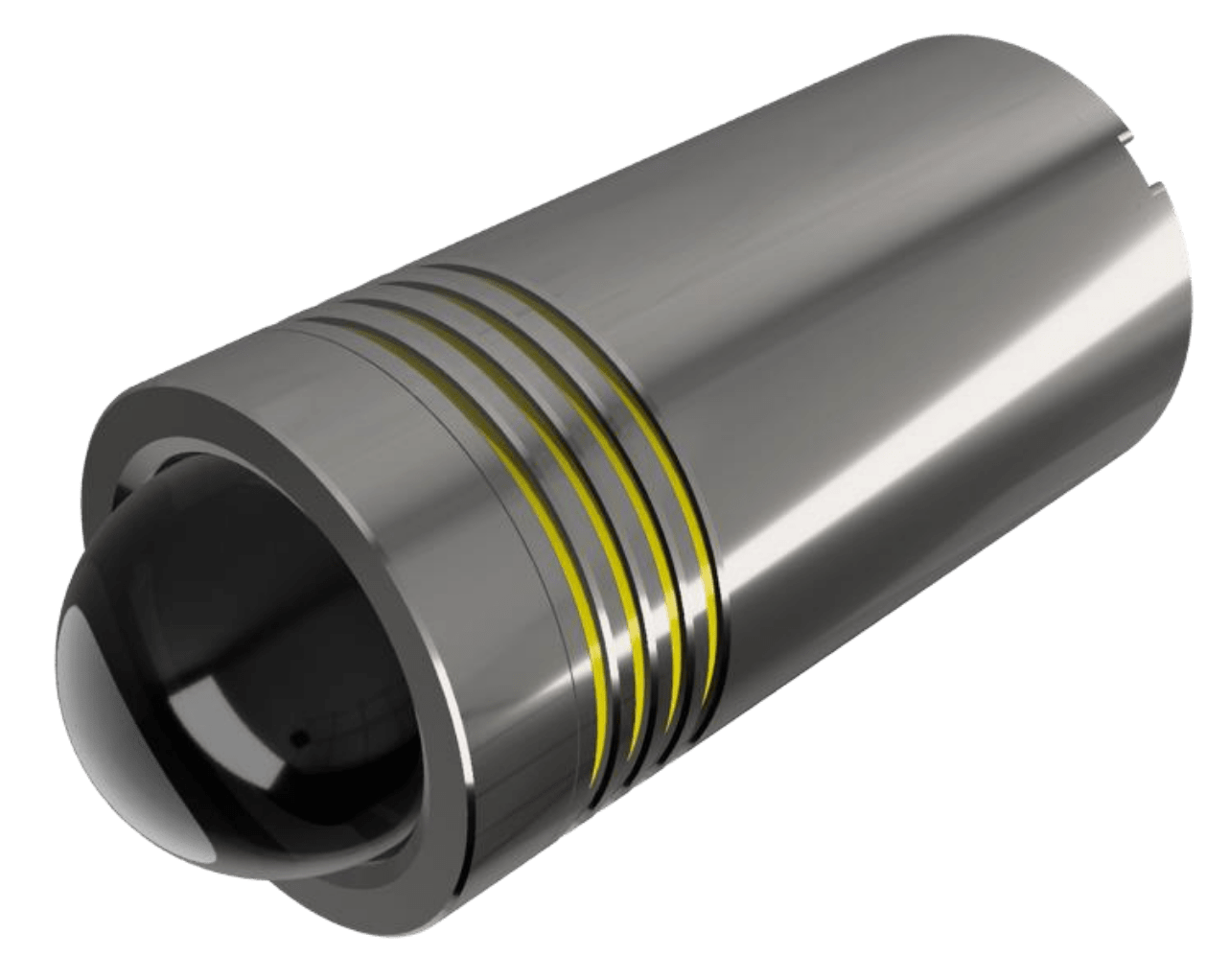

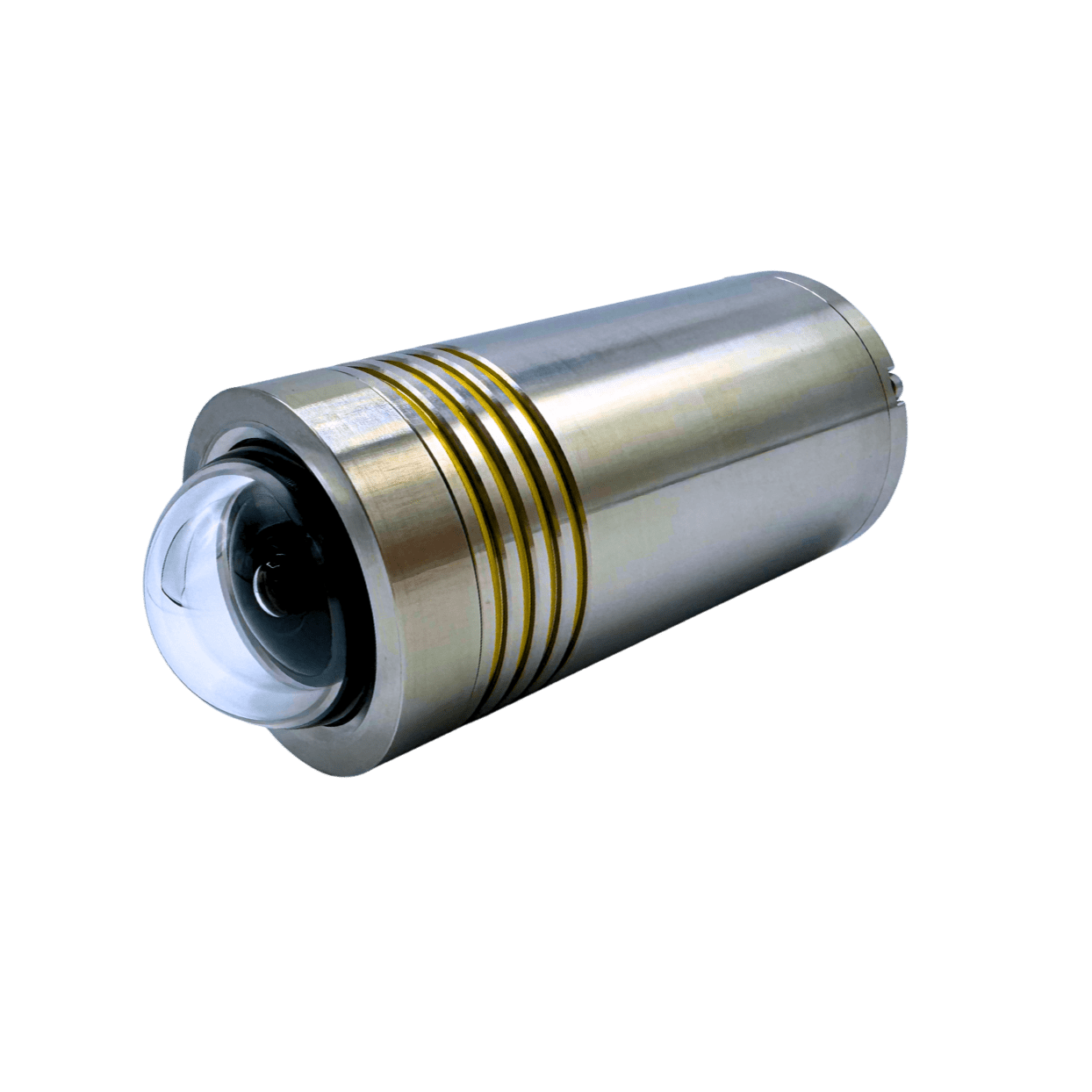

CT3027WAC Wide Angle Compact IP Colour Camera
Compact wide-angle subsea colour camera for inspection and survey applications.
The CT3027WAC is a compact high-definition subsea colour camera with a wide-angle field of view, designed for applications requiring maximum scene coverage.
Featuring a 170° fisheye lens and a 1/2 inch 2.13 MP STARVIS CMOS sensor, the system delivers strong low-light performance and full HD image quality. The compact and robust titanium housing allows integration onto ROV systems, diver helmets, and deployment within confined subsea environments.
When used with compatible control systems, multiple cameras can be deployed and monitored simultaneously, making it well suited for survey and observation tasks.
Subsea Electronics
Technical Specifications
- Model: CT3027WAC
- Housing: Titanium (Standard)*
- Window: Optical grade cast acrylic
- Depth Rating: 6,000 m
- Dimensions: 133 mm (L) x 57 mm (D)
- Weight: 547 g (water) / 850 g (air)
- Connector: MCBH6M (standard)
- Voltage: 12–24 VDC
- Angle of View: 170° (in water)
- Lens: Fisheye
- Sensor: 1/2 inch 2.13 MP STARVIS CMOS
- Minimum Illumination: 0.005 lux / f1.2
- Operating Temperature: -20 to +50 °C
- Operating Life: 50,000 hours
- Operating Current: 130 mA
- Signal to Noise Ratio: >52 dB
- Resolution: 1080p
- Latency: ~200 ms
*Alternative housing materials available on request
