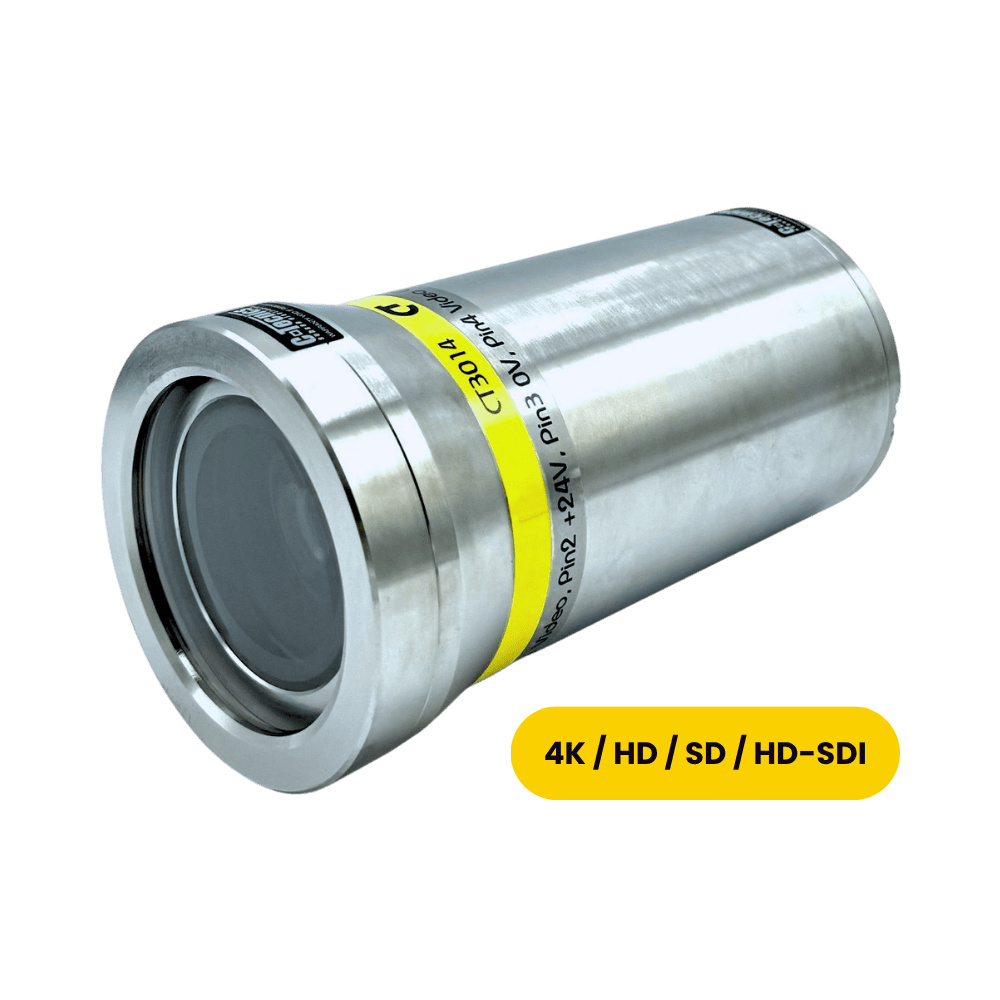

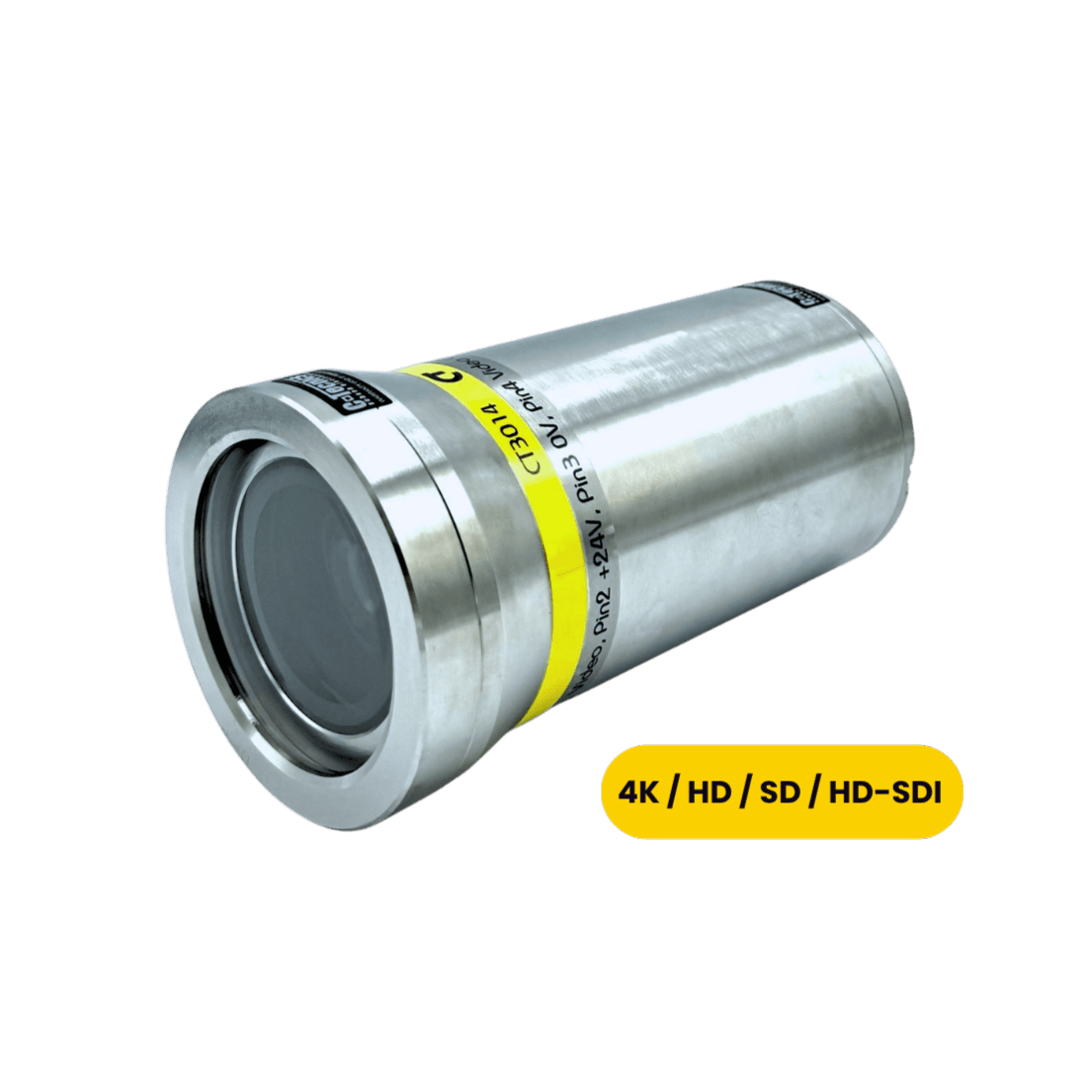

CT3014 Mantis 3 30x Zoom 4K HD, SD, and HD-SDI Camera

Subsea colour focus and zoom camera with a choice of 4K, HD, SD and HD-SDI video outputs.

The CT3014 Mantis 3 is a high-resolution subsea colour camera with integrated focus and optical zoom, designed for detailed visual inspection and long-range underwater viewing.

Available with 4K, HD, SD and HD-SDI output configurations, the camera can be specified to suit different ROV, survey and subsea inspection systems.

The 4K configuration incorporates 20x optical zoom and an 8 MP CMOS sensor. The HD, SD and HD-SDI configurations incorporate 30x optical zoom and a 1/2.8-inch Sony STARVIS 2 CMOS sensor.

A robust titanium housing and sapphire window support reliable operation in demanding subsea environments at depths of up to 6,000 metres.

The Mantis 3 is also available in a full HD IP/Ethernet configuration with 30x optical zoom, H.265/H.264 encoding and support for multiple Ethernet streaming protocols.

Subsea Electronics

Technical Specifications

Model:CT3014-4K-TI (4K), CT3014-HD (HD),
CT3014-SD-TI (SD), CT3014-HDSDI-TI (HD-SDI)
Housing: Titanium (Standard)*
Window: Sapphire
Depth Rating: 6000 m
Housing Dimensions**: 100mm (D, Body)/110mm (D, Bezel) x 204mm (L)
Weight: 1.8 kg (water) / 4.15 kg (air)
Connector***: MCBH8M (SD), HF75CX6M (HD-SDI)
Voltage: 12–24 VDC
Angle of View in Water: 75° diagonal / 64° horizontal (4K), 70° diagonal / 61° horizontal (HD, SD and HD-SDI)
Power Consumption: 12 W (4K), Maximum 650mA (HD, SD and HD-SDI)
Sensor: 1/1.8-inch 8 MP CMOS (4K), 1/2.8-inch Sony STARVIS 2 CMOS (HD, SD and HD-SDI)
Minimum Illumination: 0.09 lux
Operating Temperature: -10°C to +50°C
Optical Zoom: 30x (HD, SD, HD-SDI), 20x (4K)
Video Resolutions: Up to 2160p at 30 fps (4K), Resolution and frame rates TBC (HD), 1 Vp-p composite PAL, 4:3 (SD), 1080p at 60, 50, 30 and 25 fps (HD-SDI)
