CT3014 Mantis 3 4K and Full HD IP Camera

4K and Full HD IP subsea camera with 20x or 30x optical zoom for detailed underwater inspection.

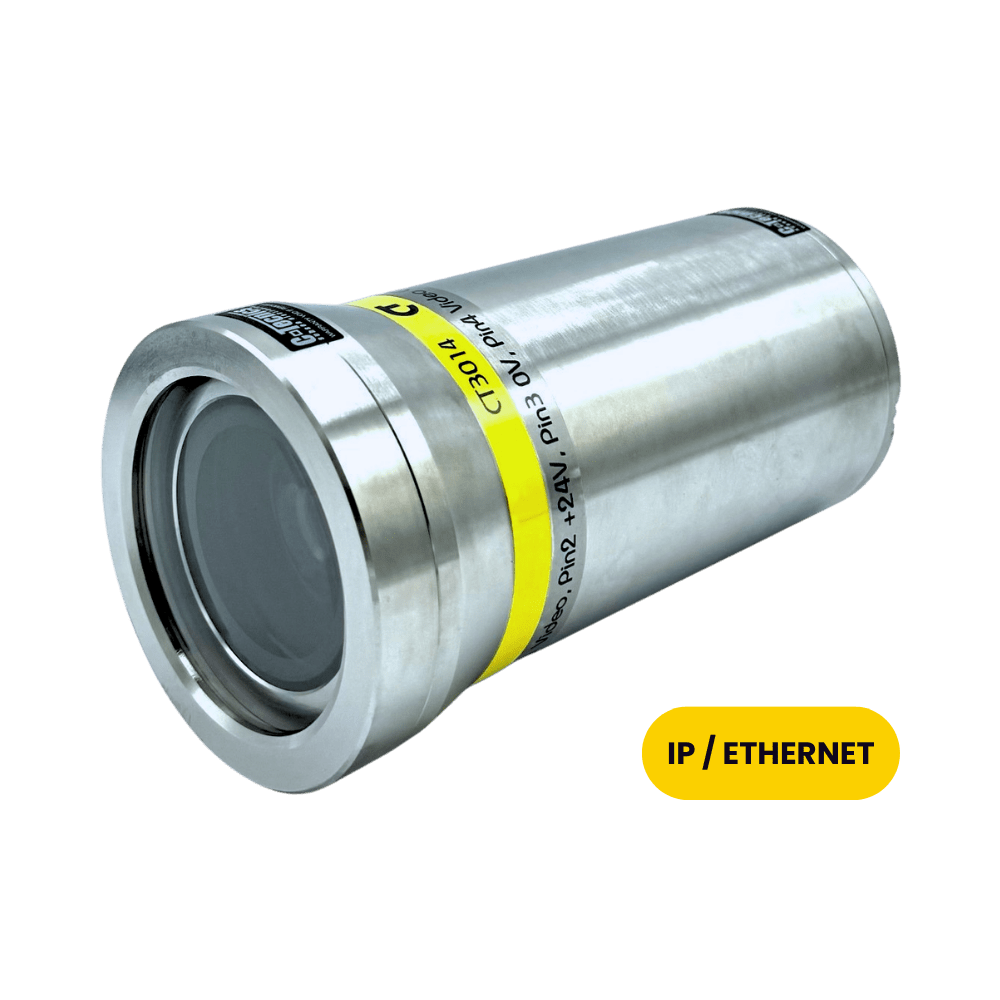

The CT3014 Mantis 3 IP is a high-resolution subsea colour camera with integrated focus and optical zoom, designed for detailed visual inspection and long-range underwater viewing.

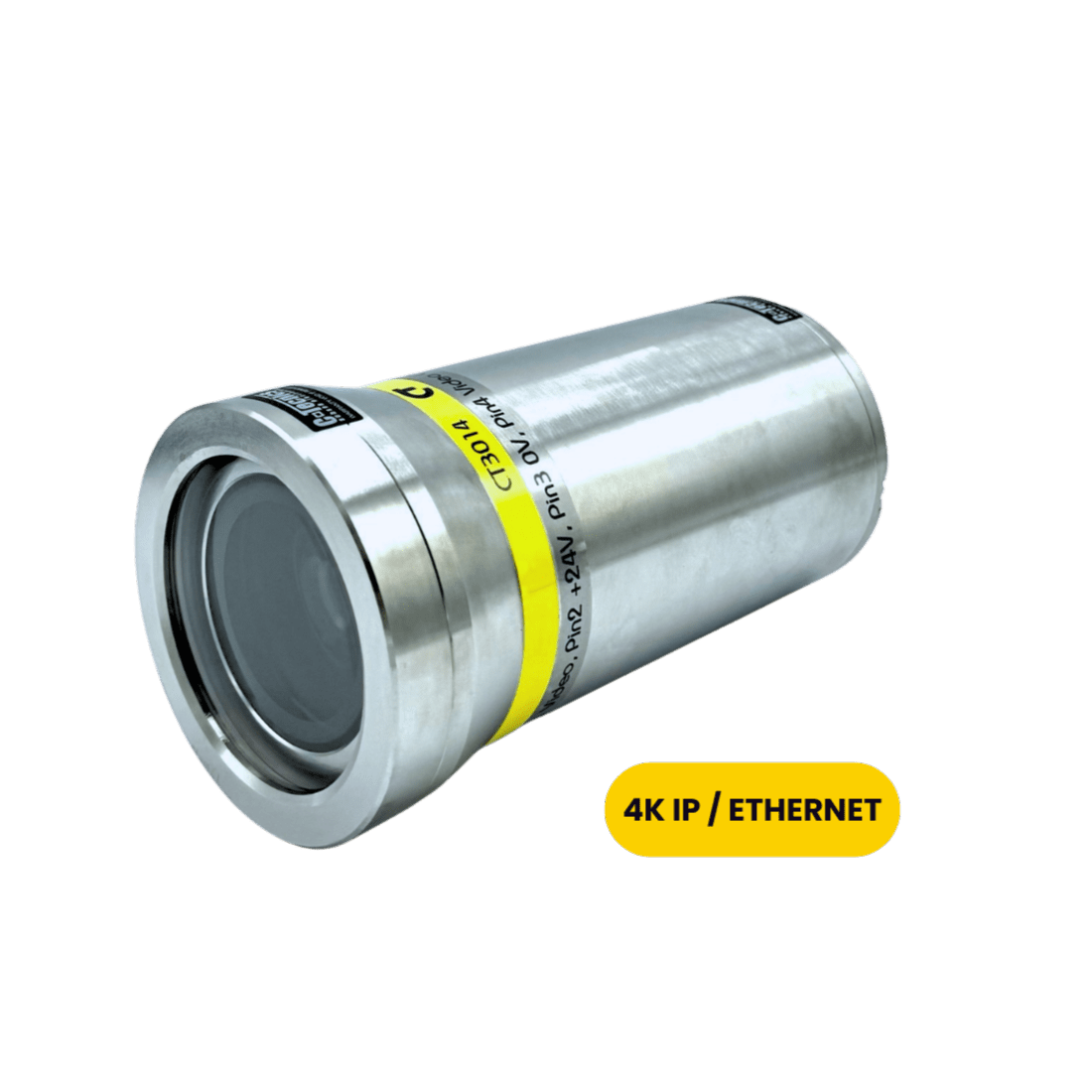

The camera is available in 4K and Full HD IP configurations. The 4K configuration incorporates 20x optical zoom and a 1/1.8-inch 8 MP CMOS sensor, while the Full HD configuration incorporates 30x optical zoom and a 1/2.8-inch Sony STARVIS 2 CMOS sensor.

Both configurations support H.265/HEVC and H.264 video encoding, together with a selection of Ethernet streaming protocols for integration with ROV, survey and remote observation systems.

A robust titanium housing and sapphire window support reliable operation at depths of up to 6,000 metres. The 12 to 24 VDC input provides flexibility across different vehicle and subsea inspection platforms.

The Mantis 3 is also available with 4K, HD, SD and HD-SDI video output configurations to suit different system integration requirements.

Subsea Electronics

Technical Specifications

Model: CT3014-IP
Housing: Titanium (Standard)*
Window: Sapphire
Depth Rating: 6000 m
Housing Dimensions**: 100mm (D, Body) / 110mm (D, Bezel) x 204mm (L)
Weight: 1.8 kg (water) / 4.15 kg (air)
Connector (Standard): MCBH8M
Voltage: 12 to 24 VDC
Angle of View in Water: 75° diagonal / 64° horizontal (4K); 70° diagonal / 61° horizontal (Full HD)
Power Consumption: 12 W (4K); 650mA maximum (Full HD)
Sensor: 1/1.8-inch 8 MP CMOS (4K); 1/2.8-inch Sony STARVIS 2 CMOS (Full HD)
Minimum Illumination: 0.09 lux
Operating Temperature: -10°C to +50°C
Optical Zoom: 20x (4K); 30x (Full HD)
Video Encoding: H.265/HEVC, H.264
Video Resolutions: Up to 2160p at 30 fps (4K); 1080p at 60, 50, 30 and 25 fps (Full HD)
Ethernet: Compatible with 10/100 or 100/1000 Mbps
Ethernet Streaming Protocols: RTP, RTSP, UDP, RTMP, TSRTP, MPTS
Latency: <120 ms
