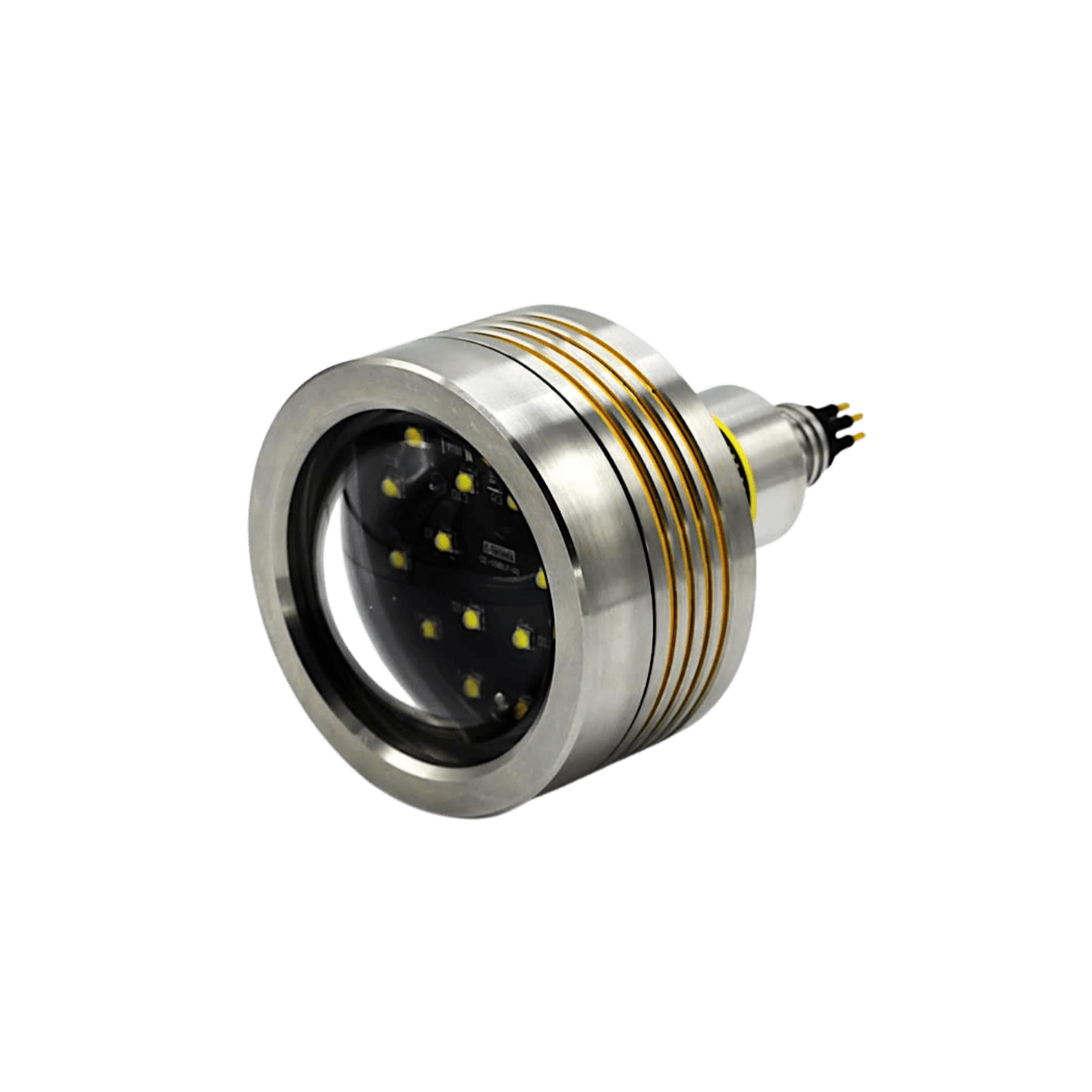

CT4011 AC/DC LED Light
High power subsea LED light with AC and DC configurations.
The CT4011 is a high-output subsea LED light, available in both 24 VDC and 110/230 VAC configurations to suit a range of subsea lighting applications. Measuring just 97.5 mm in length (excluding connector) with a 90 mm diameter, it combines a compact, robust design with high-performance illumination.
The domed window design provides wide and even light distribution across the working area. A range of dimming and control options are available, including 0 to 5 V, RS232/RS485, Triac, and PWM, allowing integration with various ROV and control systems.
C-Net, a serial control application for PC, is also available for use with compatible C-Tecnics LED systems.
Order code variants: CT4011TI, CT4011-TI, CT4011-AC, CT4011AC, CT4011AC-TI, CT4011-AC-TI.
Subsea Electronics
Technical Specifications
- Model: CT4011 (DC), CT4011 (AC)
- Housing: Titanium (Standard)*
- Window: Domed acrylic
- Depth Rating: 6,000 m
- Housing Dimensions**: L 97.5 mm x D 90 mm
- Weight: 627 g (water) / 1,266 g (air)
- Connector: MCBH3M (0–5 V), MCBH5M (RS232/RS485), others available
- Voltage: 24 V DC / 110–230 V AC
- Operating Current: 1.4 A (DC) / 700 mA (AC)
- Power Consumption: 33.6 W (DC) / ~77–161 W (AC)*
- Dimming Options: 0–5 V, RS232/RS485, Triac, PWM
- Typical Luminous Flux: 9,000 lm (DC) / 18,000 lm (AC)
- Colour Temperature: 5,500 K
- Beam Angle: 125°
- Operating Life: 50,000 hours
*Alternative housing materials available on request
